Park Gear and Output Carrier Hub Installation

WARNING: This page is about a different variant/trim than selected.

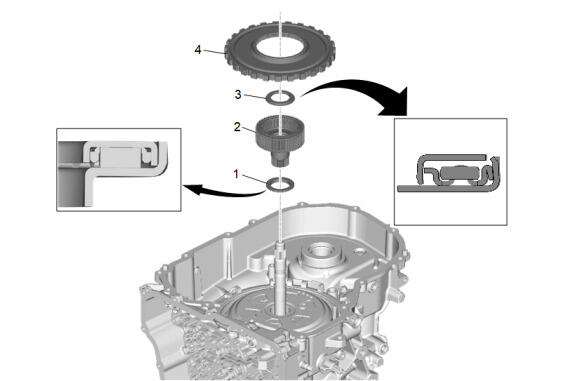

GM4420366Courtesy of GENERAL MOTORS COMPANY
Park Gear and Output Carrier Hub Installation

Callout Component Name
1 Output Sun Gear Thrust Bearing
2 Output Carrier Transfer Drive Gear Hub
3 Output Sun Gear Thrust Bearing
4 Park Gear
