Drive Sprocket, Driven Sprocket, and Drive Link Installation

WARNING: This page is about a different variant/trim than selected.

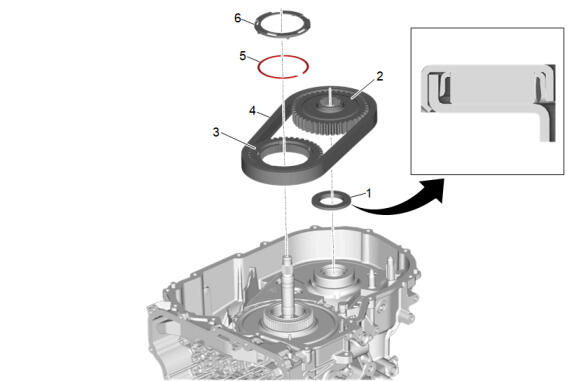

Fig 1: Exploded View Of Drive Sprocket, Driven Sprocket And Drive Link Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Driven Sprocket Bearing
2	Driven Sprocket NOTE: Install the drive link with the colored links and/or part number facing up. The drive link, drive, and driven sprocket assemblies must be installed at the same time. The driven sprocket ball bearing inner race has a slight interference fit with the case. Tap gently with the palm of a hand or a soft tip hammer to install. The ball bearing should spin freely and smoothly.
3	Drive Link
4	Drive Sprocket
5	Drive Sprocket Retaining Ring
6	Drive Sprocket Thrust Washer
