Control Valve Solenoid Body (2 of 2)
WARNING: This page is about a different variant/trim than selected.

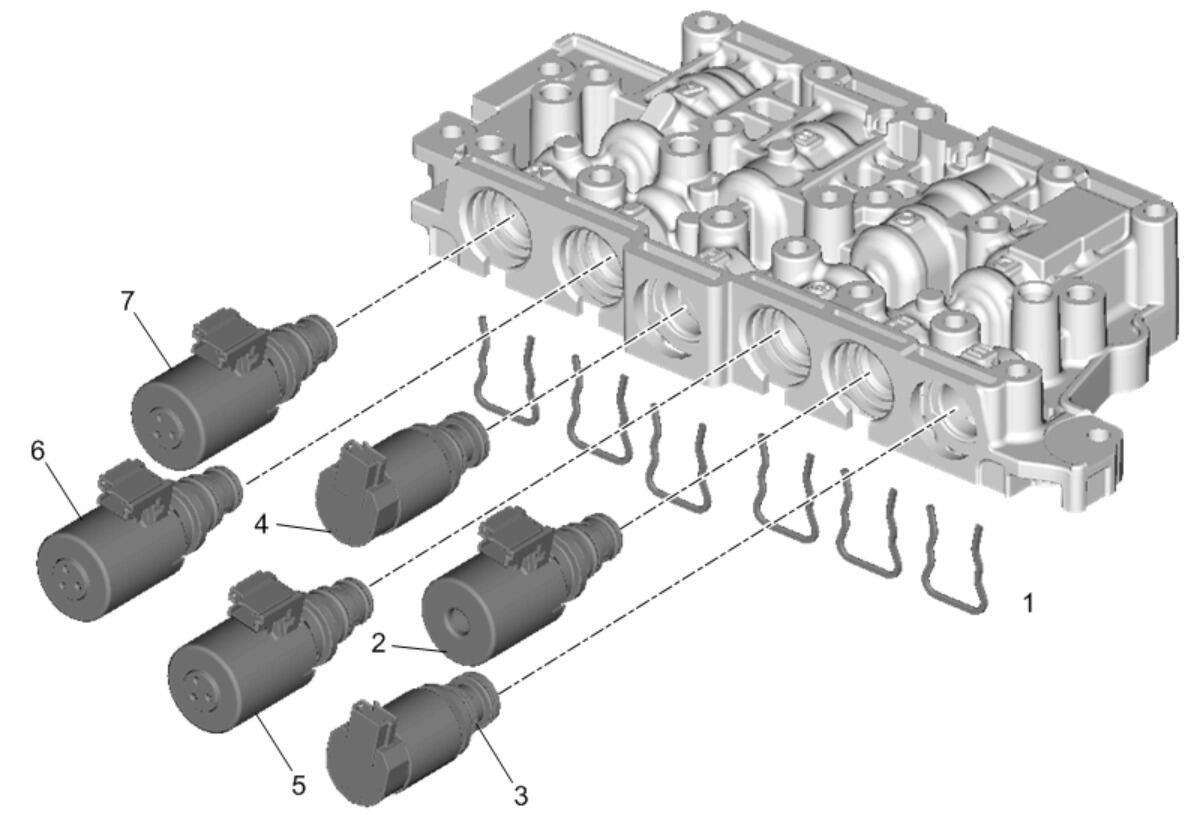

Control Valve Solenoid Body (2 of 2)
| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Preliminary Procedure Clean and inspect all valve components and the valve solenoid body. The control valve solenoid body assembly is only replaceable as an assembly.Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. |
|
| 1 | Control Valve Solenoid Retainer [6x] |
| 2 | Shift Solenoid Valve |
| 3 | Shift Solenoid Valve |
| 4 | Shift Solenoid Valve |
| 5 | Shift Solenoid Valve |
| 6 | Shift Solenoid Valve |
| 7 | Shift Solenoid Valve |
