Auxiliary Fluid Accumulator Removal

WARNING: This page is about a different variant/trim than selected.

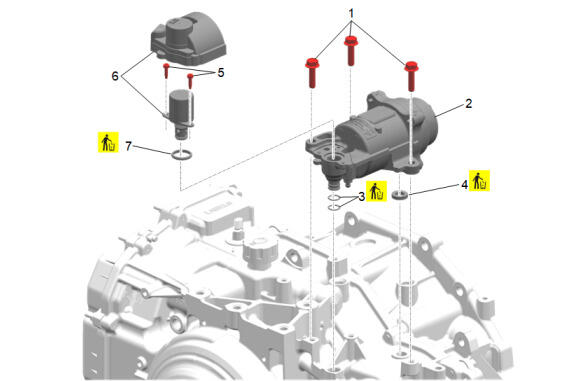

Fig 1: Exploded View Of Auxiliary Fluid Accumulator Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Auxiliary Fluid Accumulator Bolt [3x]
2	Automatic Transmission Auxiliary Fluid Accumulator
3	Automatic Transmission Case Seal [2x] NOTE: Remove and DISCARD the O-ring seal.
4	Accumulator Bypass Valve Seal NOTE: Remove and DISCARD the seal.
5	Shift On/Off Solenoid Valve NOTE: Repair or replace as necessary.
6	Accumulator Valve Body Bolt [2x]
7	Accumulator Bypass Valve Seal NOTE: Remove and DISCARD the seal.
