Turbine Shaft, 3-8 and 5-7 Reverse Clutch Hub, Reaction Carrier Hub and Plates Disassemble
WARNING: This page is about a different variant/trim than selected.

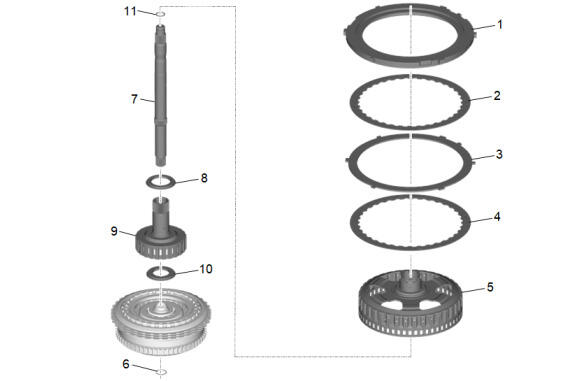

Fig 1: Exploded View Of Turbine Shaft, 3-8 And 5-7 Reverse Clutch Hub, Reaction Carrier Hub And Plates Components
Turbine Shaft, 3-8 and 5-7 Reverse Clutch Hub, Relation Carrier Hub and Plates Disassemble
| Callout | Component Name |
|---|---|
| 1 | 2-9 Clutch Backing Plate |
| 2 | 3-8 Clutch Plate - Friction |
| 3 | 3-8 Clutch Plate |
| 4 | 3-8 Clutch Plate - Friction |
| 5 | 3-8 and 5-7-Reverse Clutch Hub |
| 6 | Turbine Shaft Retainer Ring
NOTE:
Remove and DISCARD the retainer. |
| 7 | Turbine Shaft |
| 8 | Reaction Carrier Sun Gear Thrust Bearing |
| 9 | Reaction Carrier Hub |
| 10 | Reaction Carrier Hub Bearing |
