6-7-8-9 Clutch Plates, Dam, and Piston Assemble

WARNING: This page is about a different variant/trim than selected.

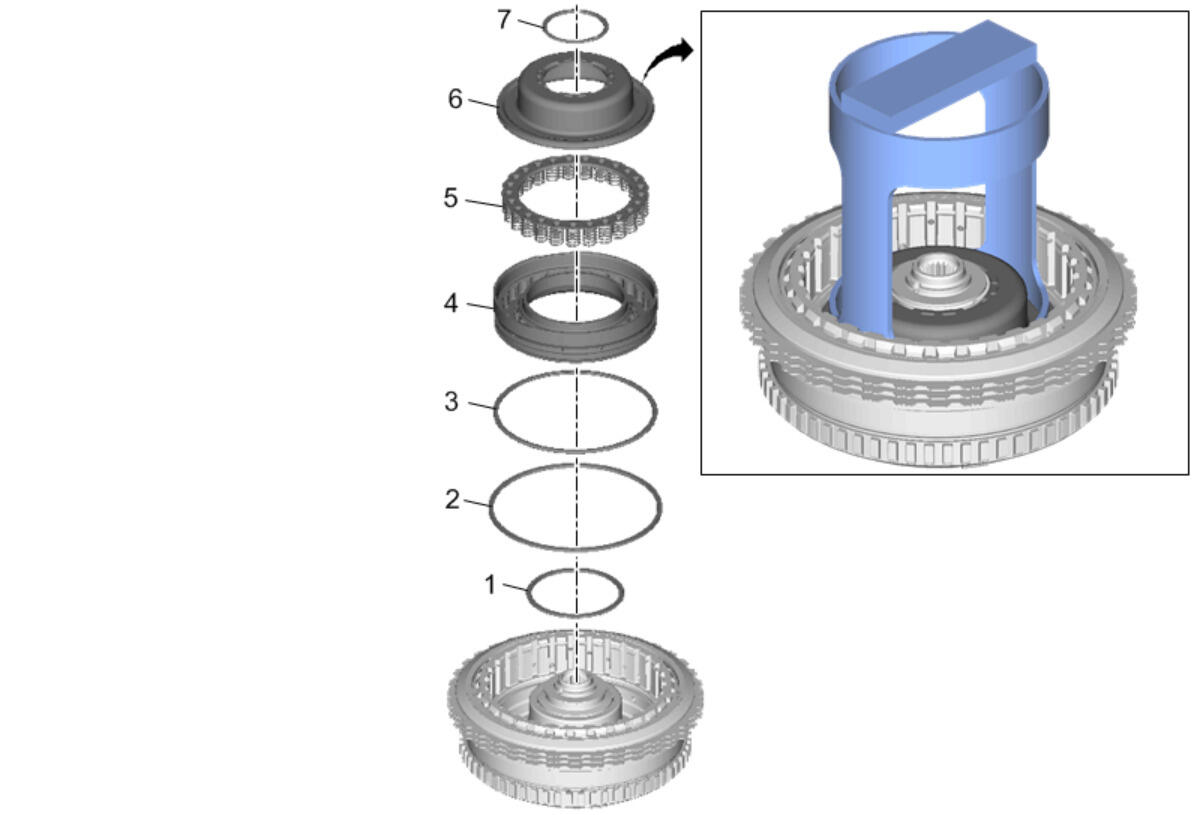

Fig 1: Exploded View Of 6-7-8-9 Clutch Plates, Dam And Piston Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	4-5-6 Clutch Piston Inner Seal NOTE: Install a NEW seal. Do NOT reuse the old seal.
2	4-5-6 Clutch Piston Dam Seal NOTE: Install a NEW seal. Do NOT reuse the old seal.
3	4-5-6 Clutch Piston Outer Seal NOTE: Install a NEW seal. Do NOT reuse the old seal.
4	6-7-8-9 Clutch Piston
5	6-7-8-9 Clutch Piston Retainer Spring
6	6-7-8-9 Clutch Piston Dam Special Tools DT-47951-2 Spring Compressor Equivalent regional tools: Special Tools
7	4-5-6 Clutch Dam Retaining Ring NOTE: Install a NEW retainer. Do NOT reuse the old retainer.
