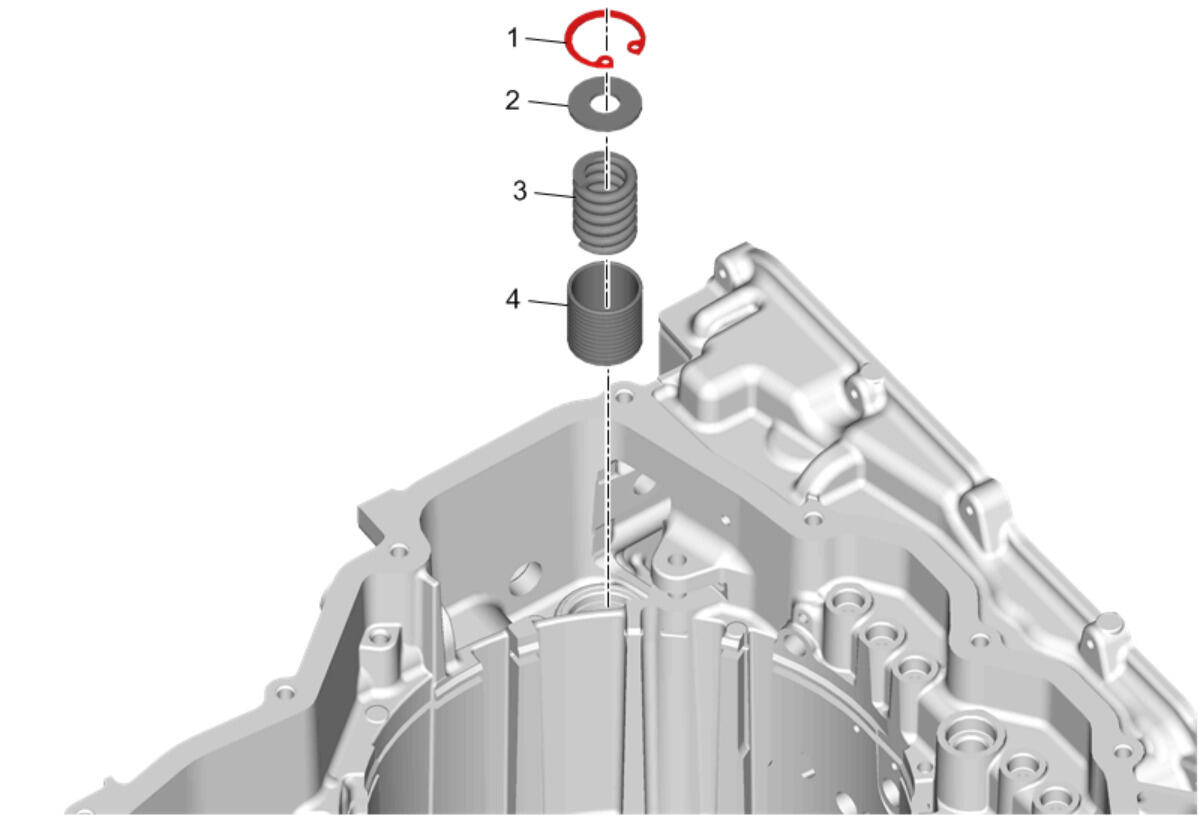

4th Clutch Accumulator Piston Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| 1 |
4th Clutch Accumulator Piston Retaining Ring |
| 2 |
4th Clutch Accumulator Piston Spring Washer |
| 3 |
4th Clutch Accumulator Piston Spring |
| 4 |
4th Clutch Accumulator Piston |
