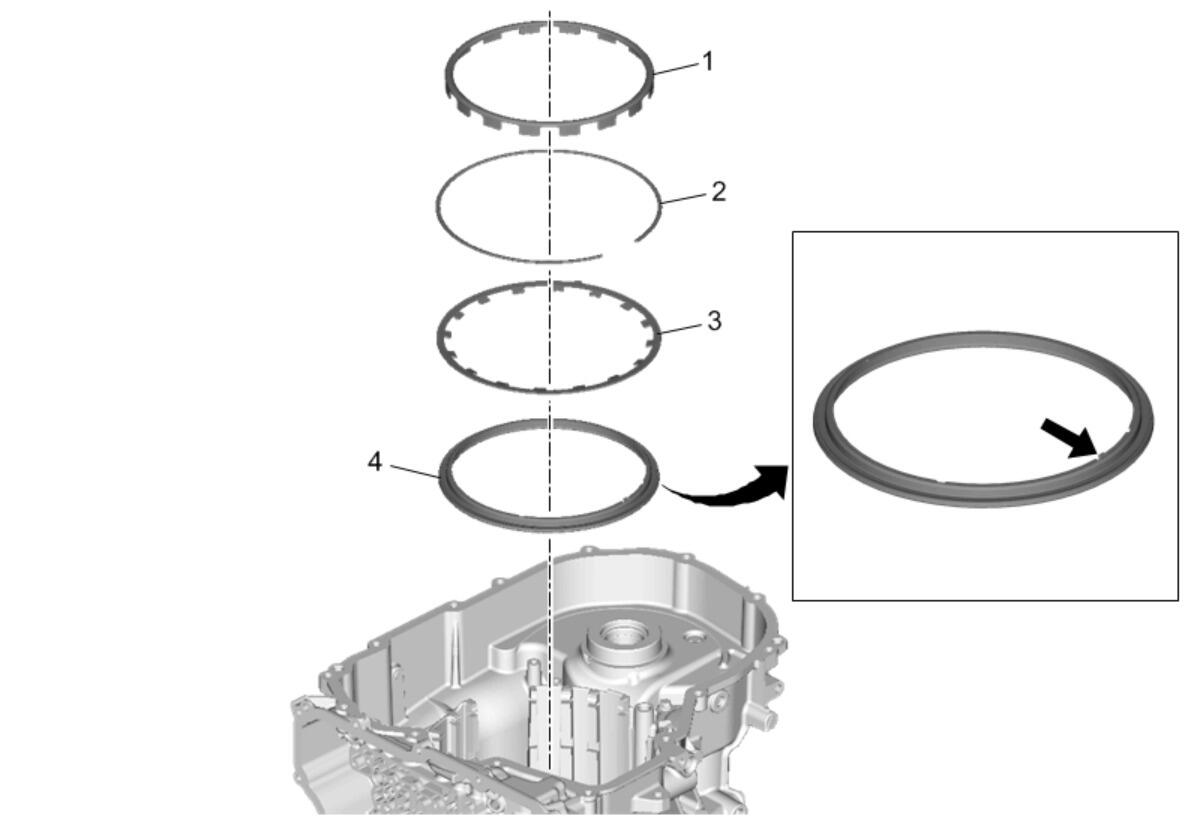

3-8 Clutch Piston Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| 1 |
3-8 Clutch Apply Ring |
| 2 |
3-8 Clutch Spring Retaining Ring |
| 3 |
3-8 Clutch Spring |
| 4 |
3-8 Clutch Piston
NOTE:
Use thin tip screwdriver at the tab of the piston to remove.
|
