2-9 and 4 Clutch Hub Installation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|

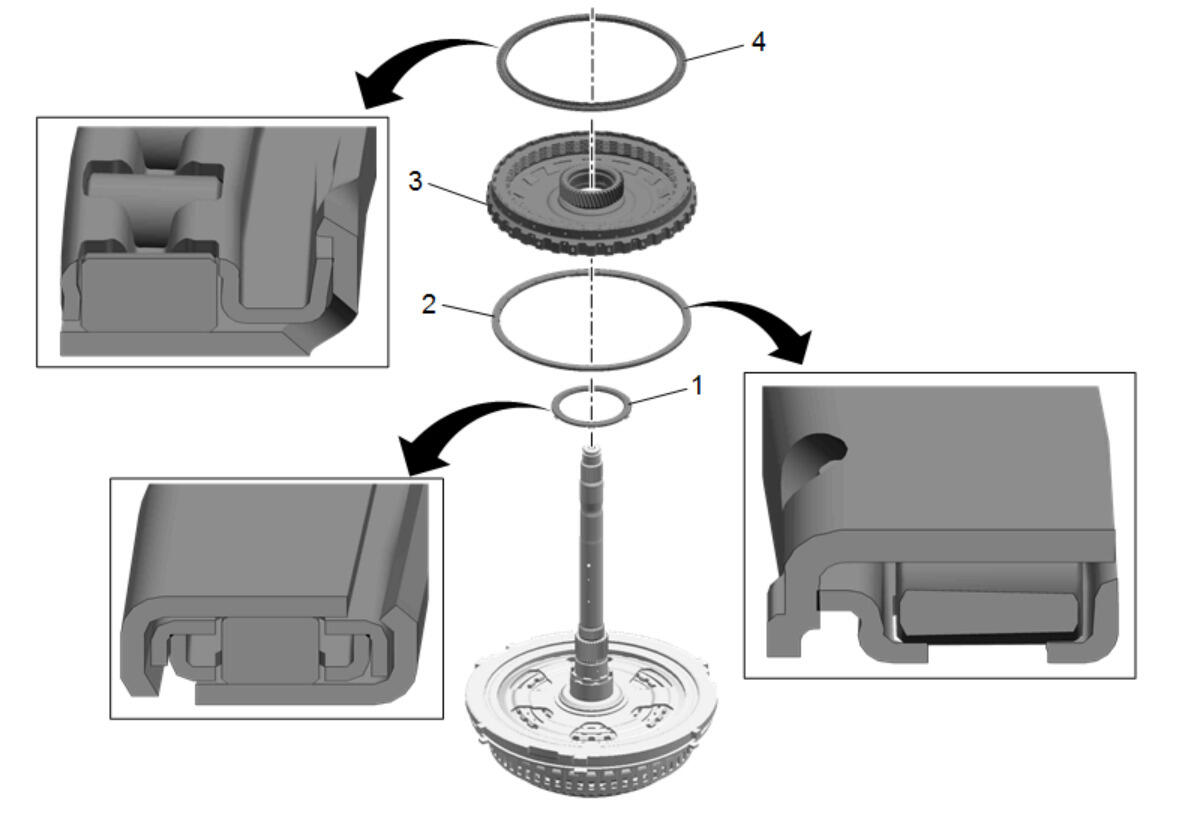

2-9 and 4 Clutch Hub Installation
| Callout |
Component Name |
| 1 |
Reaction Sun Gear Thrust Bearing |
| 2 |
4th Gear Bearing |
| 3 |
2-9 and 4 Clutch Hub Assembly |
| 4 |
4th Clutch Thrust Bearing |
