1-Reverse and 1-2-3-4-5-6 Clutch Piston Housing (2 of 2) Disassemble

WARNING: This page is about a different variant/trim than selected.

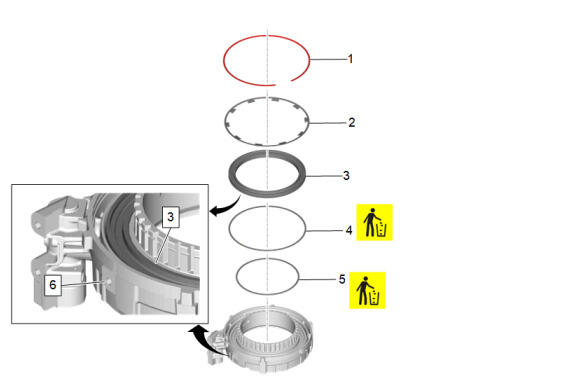

Fig 1: Exploded View Of 1-Reverse And 1-2-3-4-5-6 Clutch Piston Housing Components (2 Of 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-3-4-5-6 Clutch Spring Retaining Ring
2	1-2-3-4-5-6 Clutch Piston Return Spring
3	1-2-3-4-5-6 Clutch Piston Procedure Blow air in port to help release the piston from the housing.
4	1-2-3-4-5-6 Clutch Piston Inner Seal Procedure Remove and DISCARD the seal.
5	1-2-3-4-5-6 Clutch Piston Seal Procedure Remove and DISCARD the seal.
