1-Reverse and 1-2-3-4-5-6 Clutch Piston Housing (1 of 2) Disassemble

WARNING: This page is about a different variant/trim than selected.

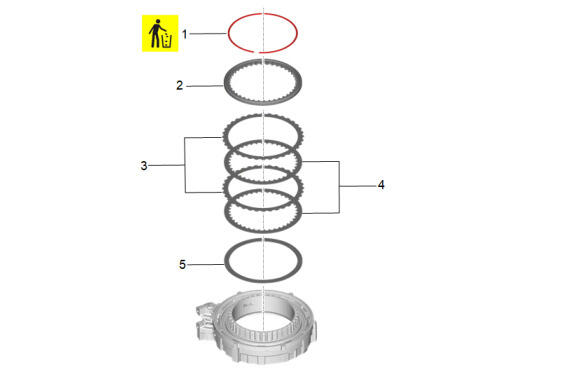

Fig 1: Exploded View Of 1-Reverse And 1-2-3-4-5-6 Clutch Piston Housing Components (1 Of 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-3-4-5-6 Clutch Backing Plate Retaining Ring
2	1-2-3-4-5-6 Clutch Backing Plate
3	1-2-3-4-5-6 Clutch Plate - Friction [2x]
4	1-2-3-4-5-6 Clutch Plate [2x]
5	1-2-3-4-5-6 Clutch Plate - Wave NOTE: The 1-Reverse Clutch Retaining Ring should not be removed from bottom. There are no serviceable parts.
