1-Reverse and 1-2-3-4-5-6 Clutch Piston Housing (2 of 2) Assemble

WARNING: This page is about a different variant/trim than selected.

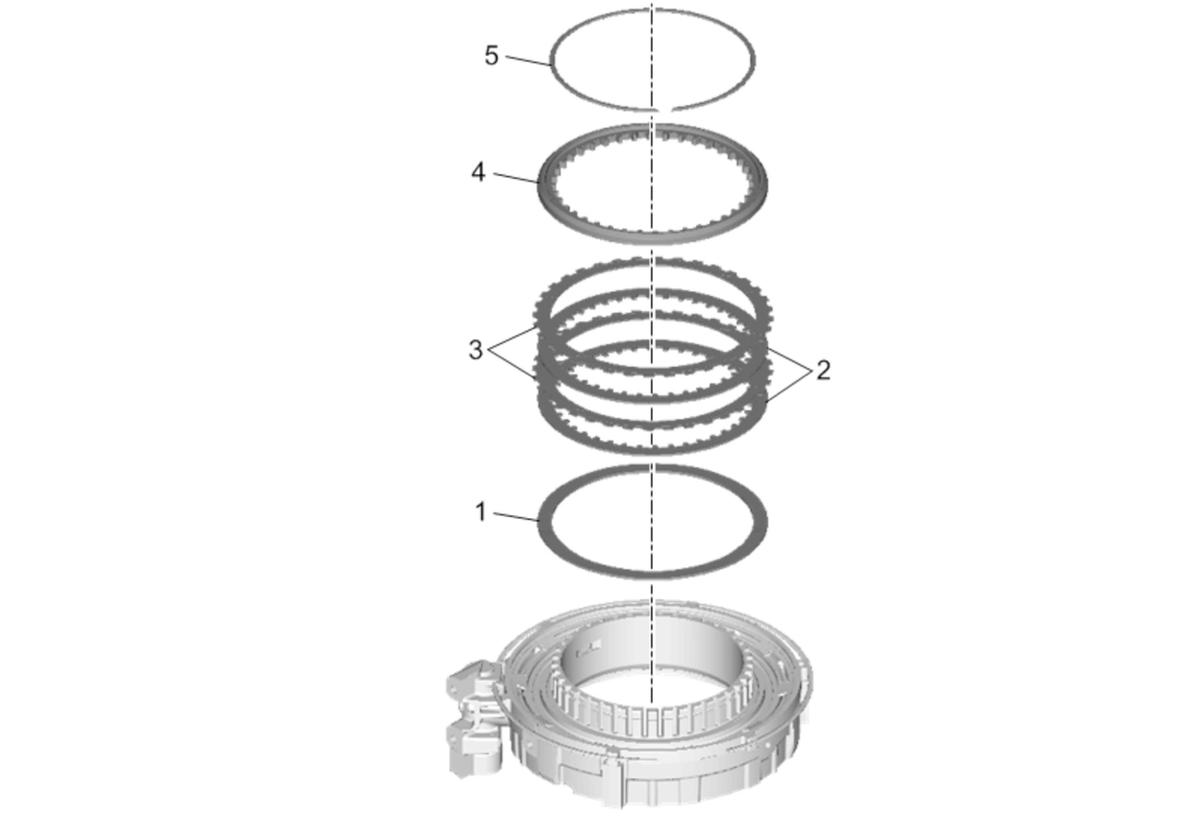

Fig 1: Exploded View Of 1-Reverse And 1-2-3-4-5-6 Clutch Piston Housing Components (2 Of 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-3-4-5-6 Clutch Plate - Wave
2	1-2-3-4-5-6 Clutch Plate [2x]
3	1-2-3-4-5-6 Clutch Plate - Friction [2x]
4	1-2-3-4-5-6 Clutch Backing Plate
5	1-2-3-4-5-6 Clutch Backing Plate Retaining Ring
