1-Reverse and 1-2-3-4-5-6 Clutch Piston Housing (1 of 2) Assemble

WARNING: This page is about a different variant/trim than selected.

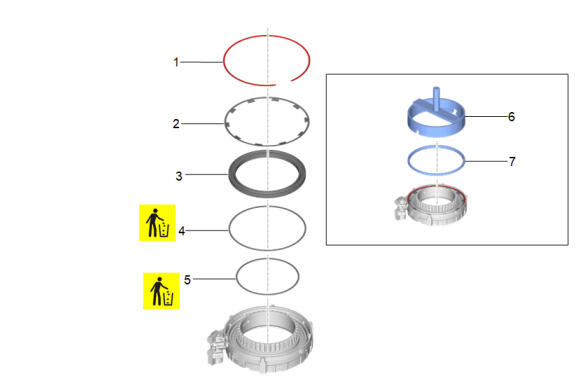

Fig 1: Exploded View Of 1-Reverse And 1-2-3-4-5-6 Clutch Piston Housing Components (1 Of 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-3-4-5-6 Clutch Piston Seal Procedure Install a NEW seal. Do NOT reuse the old seal. NOTE: The 1-Reverse Clutch Retaining Ring should not be removed from bottom. There are no serviceable parts.
2	1-2-3-4-5-6 Clutch Piston Inner Seal Procedure Install a NEW seal. Do NOT reuse the old seal.
3	1-2-3-4-5-6 Clutch Piston
4	1-2-3-4-5-6 Clutch Piston Return Spring Procedure Ensure spring is centered.
5	1-2-3-4-5-6 Clutch Spring Retaining Ring Procedure Install the DT-47797-2 Spring Installer Install the and press on the DT-47797 Spring Installer until you hear the retaining ring snap into the groove. Special Tools DT-47797 Spring Installer DT-47797-2 Spring Installer Equivalent regional tools: Special Tools
