Seal Location (Accumulator)

WARNING: This page is about a different variant/trim than selected.

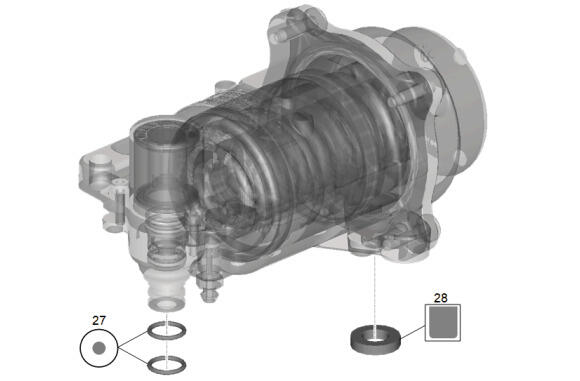

Fig 1: Identifying Seal Component Locations (Accumulator)
GM4528544Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
27 Automatic Transmission Case Seal
28 Accumulator Bypass Valve Seal
