Section 13 (Automatic Transmission - 9T50 (M3D) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics
>>

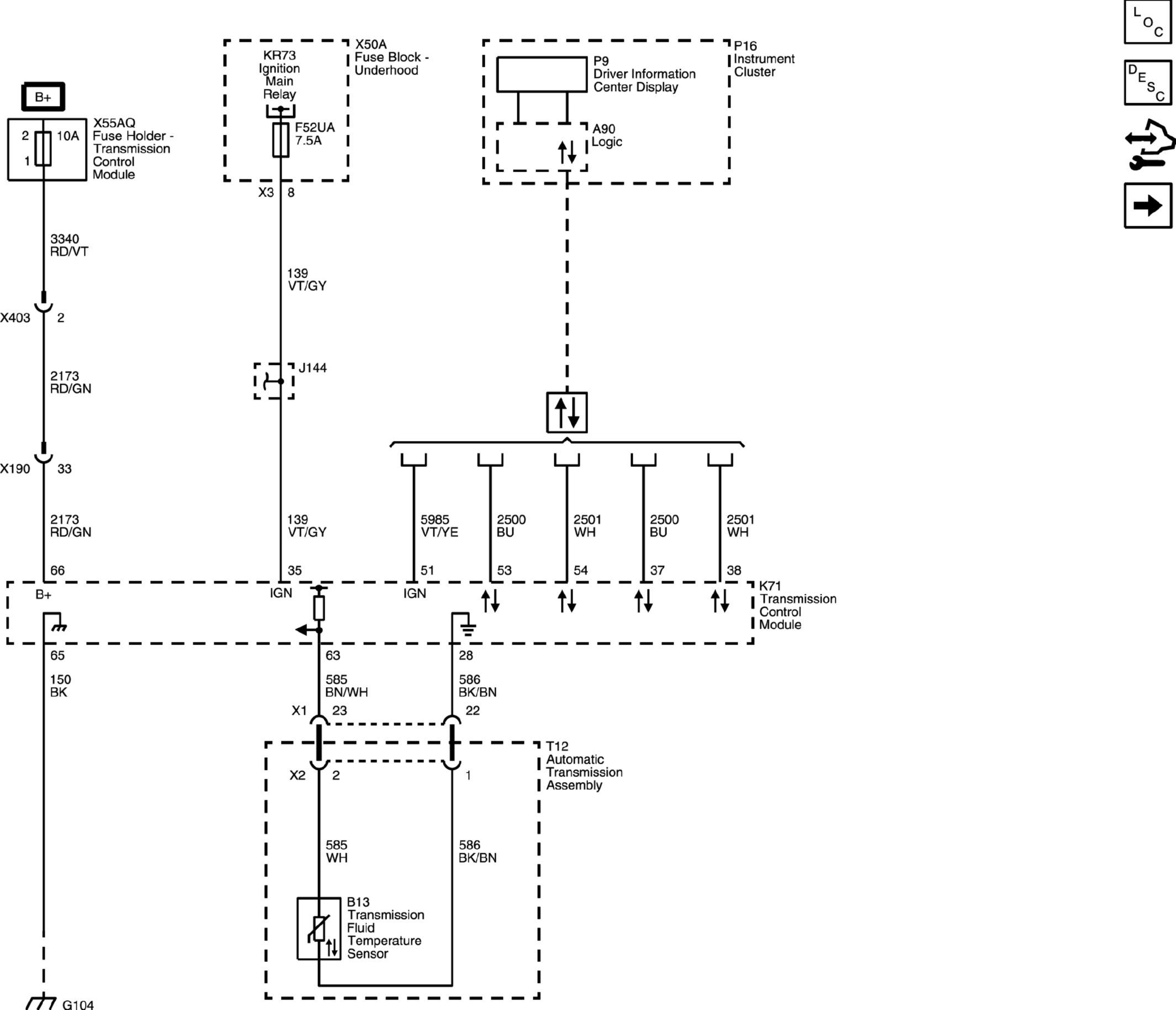

Power, Ground, Serial Data, MIL and Fluid Temperature (M3D)
Power, Ground, Serial Data, MIL and Fluid Temperature (M3D)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
