Section 12 (Automatic Transmission - 9T50 (M3D) - Description And Operation)
>>
Description and Operation
>>
Reverse (Hydraulic Circuits)
>>
Reverse - A/T System Hydraulic Diagram
Reverse - A/T System Hydraulic Diagram
WARNING:
This page is about a different variant/trim than selected.

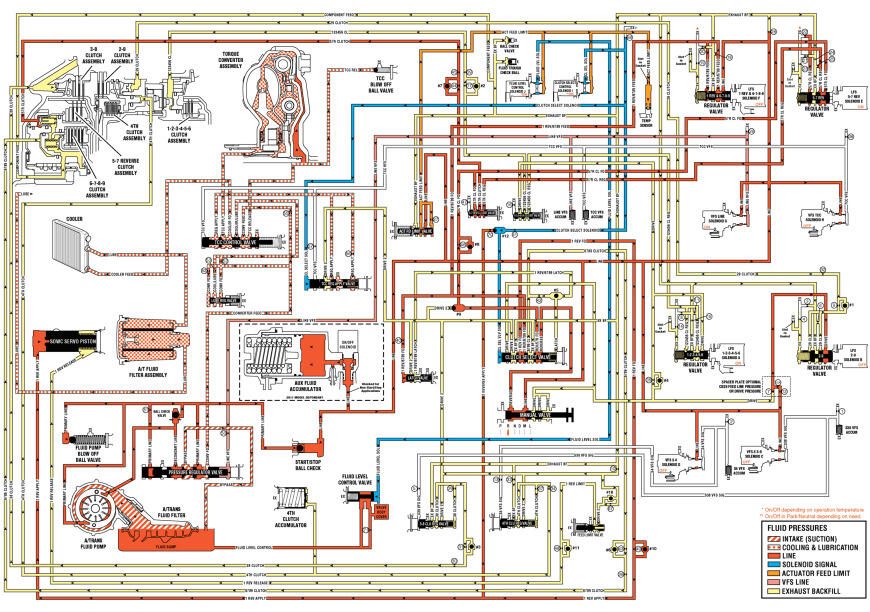

Fig 1: Identifying Reverse Hydraulic Diagram
Courtesy of GENERAL MOTORS COMPANY
