Mechanical Powerflow from The Torque Converter To The Turbine Shaft - Engine Running

WARNING: This page is about a different variant/trim than selected.

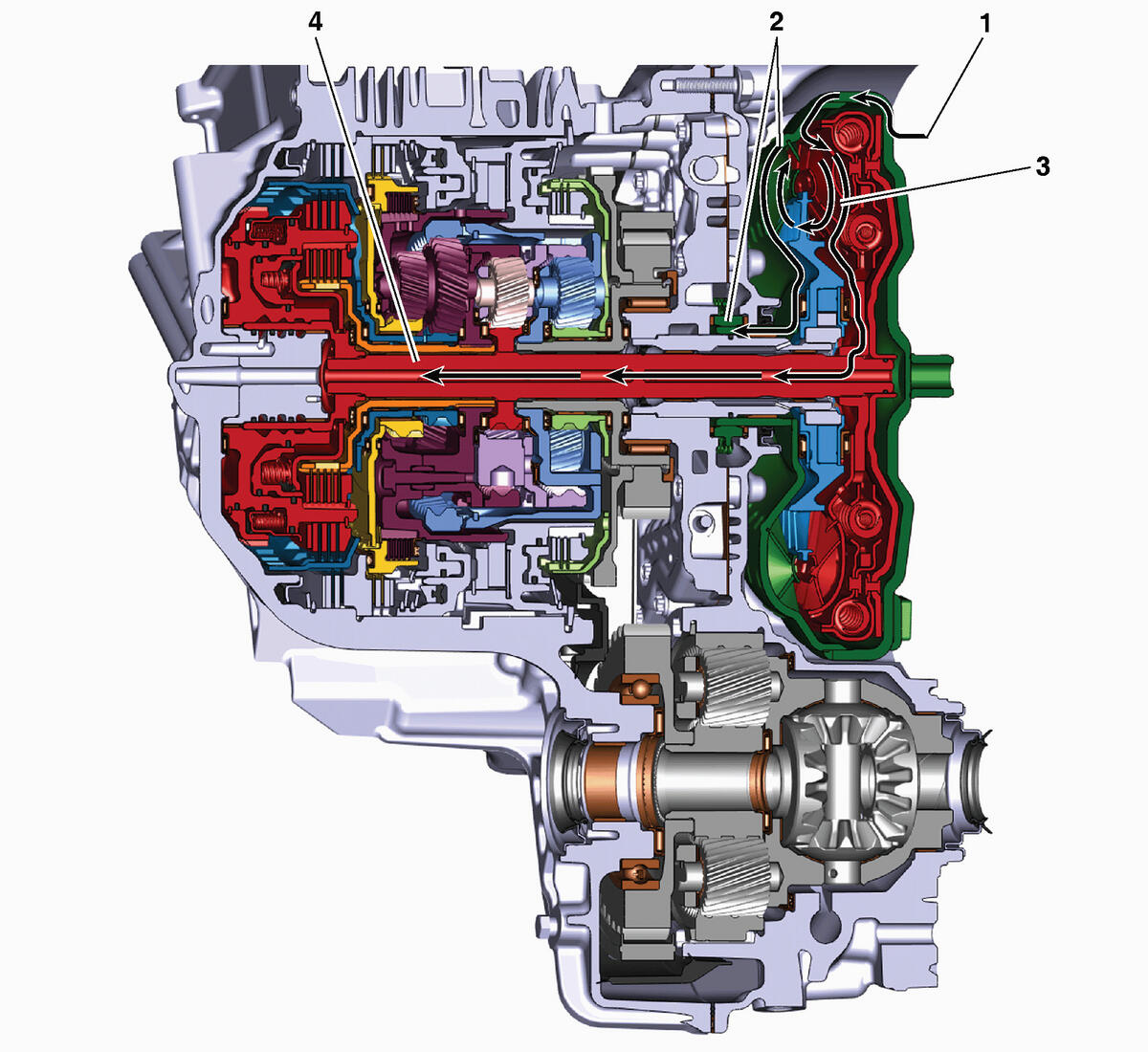

Fig 1: Identifying Mechanical Powerflow from Torque Converter To Turbine Shaft - Engine Running Hydraulic Diagram
GM4704425Courtesy of GENERAL MOTORS COMPANY
