Drive Range, Sixth Gear - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

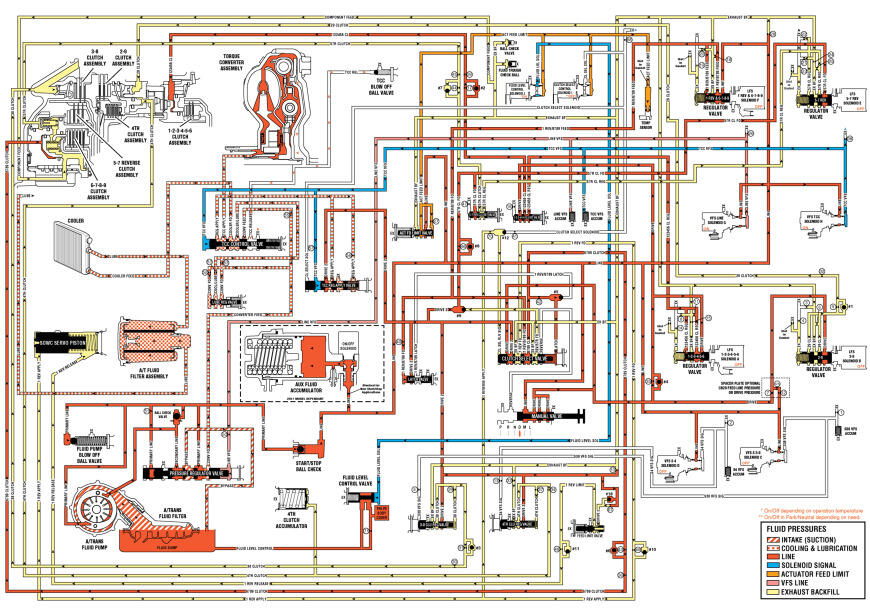

Fig 1: Identifying Drive Range, Sixth Gear Hydraulic Diagram
GM4516458Courtesy of GENERAL MOTORS COMPANY
