Water-in-Fuel Draining

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Diesel/Gasoline Vapors Warning WARNING: Safety Goggles and Fuel Warning Preliminary Procedures Lifting and Jacking the Vehicle . Install a suitable hose at the fuel filter water bleed screw, and collect the fuel in a suitable container.

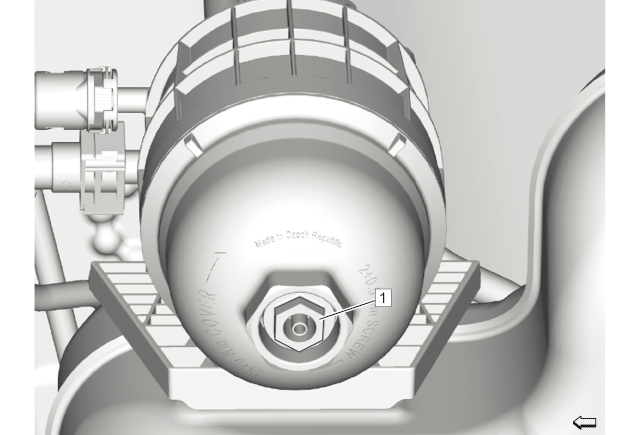

1	Fuel Filter Water Bleed Screw CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Lifting and Jacking the Vehicle .
Install a suitable hose at the fuel filter water bleed screw, and collect the fuel in a suitable container.

Fuel Filter Water Bleed Screw

CAUTION:

Tighten
2.5 N.m (22 lb in)
