Mass Airflow Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

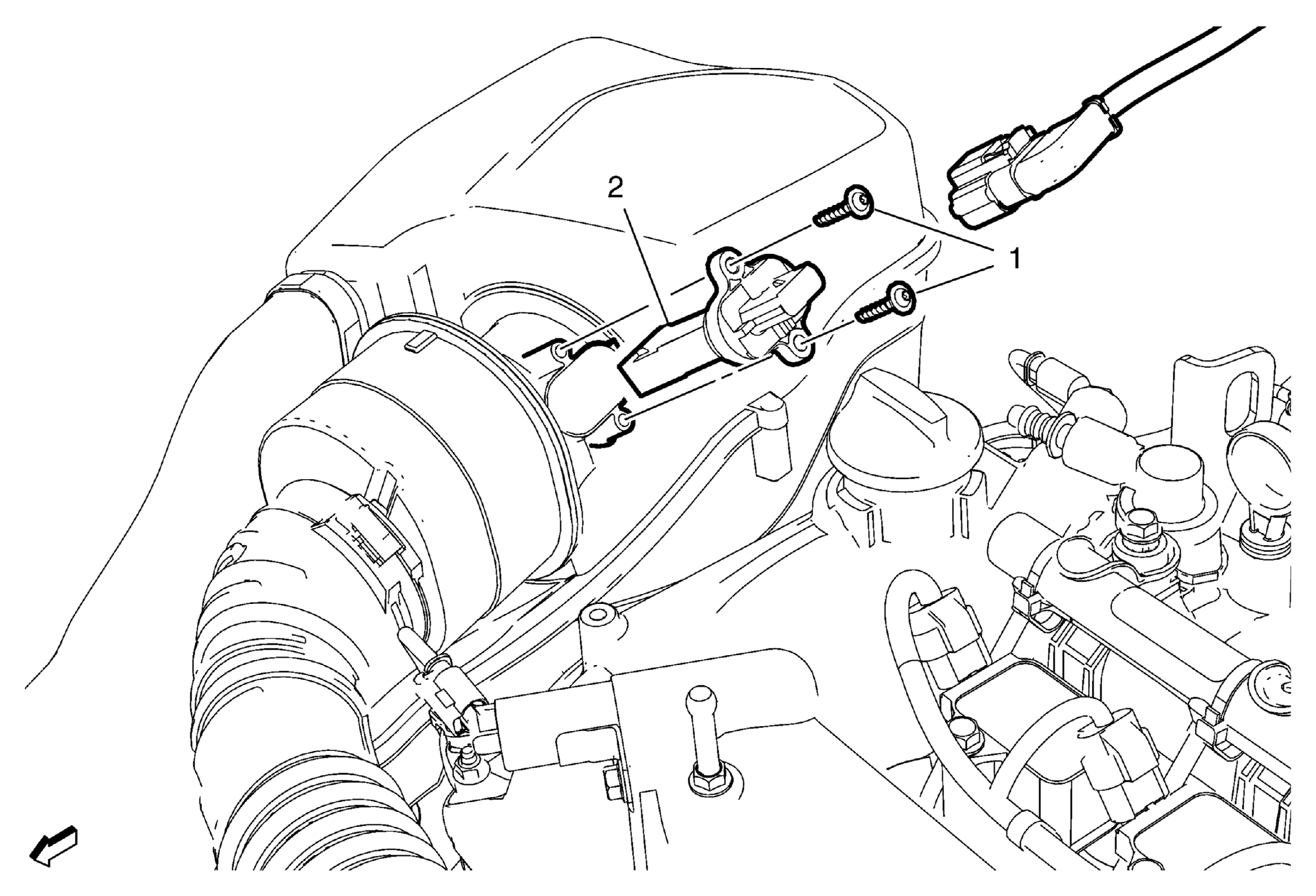

GM3686892Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Disconnect the electrical connector.
1 Mass Airflow Sensor Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Mass Airflow Sensor

Procedure

  1. Connect the electrical connector.
  2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  3. Perform the BARO sensor reset. BARO Sensor Reset
  4. Perform the NOx catalyst reductant loading reset. NOx Catalyst Reductant Loading Reset
