Fuel Tank Filler Hose Replacement

WARNING: This page is about a different variant/trim than selected.

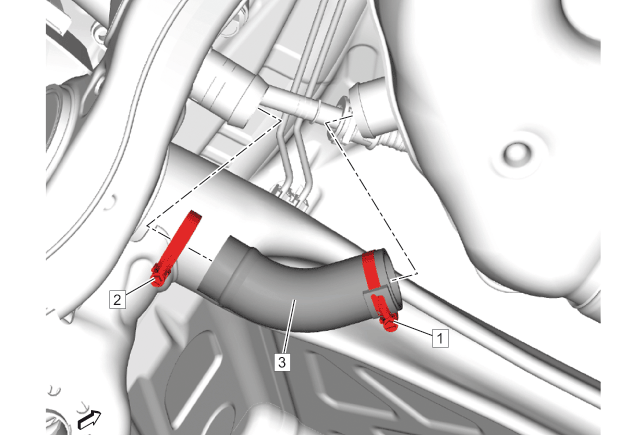

GM3682610Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Diesel/Gasoline Vapors Warning

WARNING:

Safety Goggles and Fuel Warning

Preliminary Procedures

  1. Battery Negative Cable Disconnection and Connection
  2. Fuel Tank Draining
1 Fuel Tank Filler Hose Clamp
NOTE:

The fuel tank filler hose clamp remains on the fuel tank filler hose
2 Fuel Tank Filler Hose Clamp
3 Fuel Tank Filler Hose
