Diagnostic Aids

WARNING: This page is about a different variant/trim than selected.

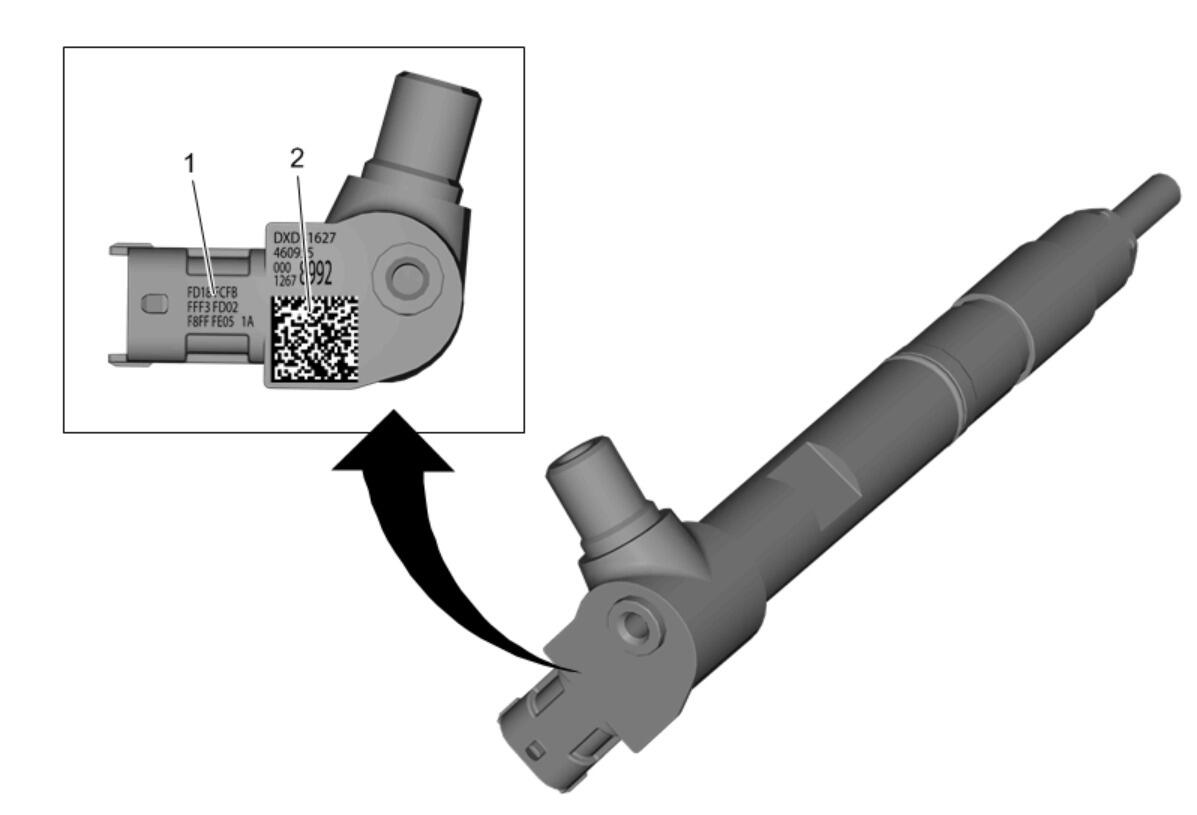

Injector Flow Identifier - Location

Courtesy of GENERAL MOTORS COMPANY

Option 1
Injector Flow Identifier (1) - Record the Injector Flow Identifier information from all injectors.

Option 2

QR Code (2) - Scan with smartphone or suitable device
Injector Flow Identifier = Digit 42-65, 68, 69

NOTE:

Bold text = Digit 42-65, 68, 69

* For example: QR Code = DXD316274609551267899200001741609929234F7 FD18FCFBFFF3FD02F8FFFE05 00 1A - Select: Injector Flow Identifier Digit 42-65, 68, 69 = FD18FCFBFFF3FD02F8FFFE051A
