Front Intake Air Duct Replacement

WARNING: This page is about a different variant/trim than selected.

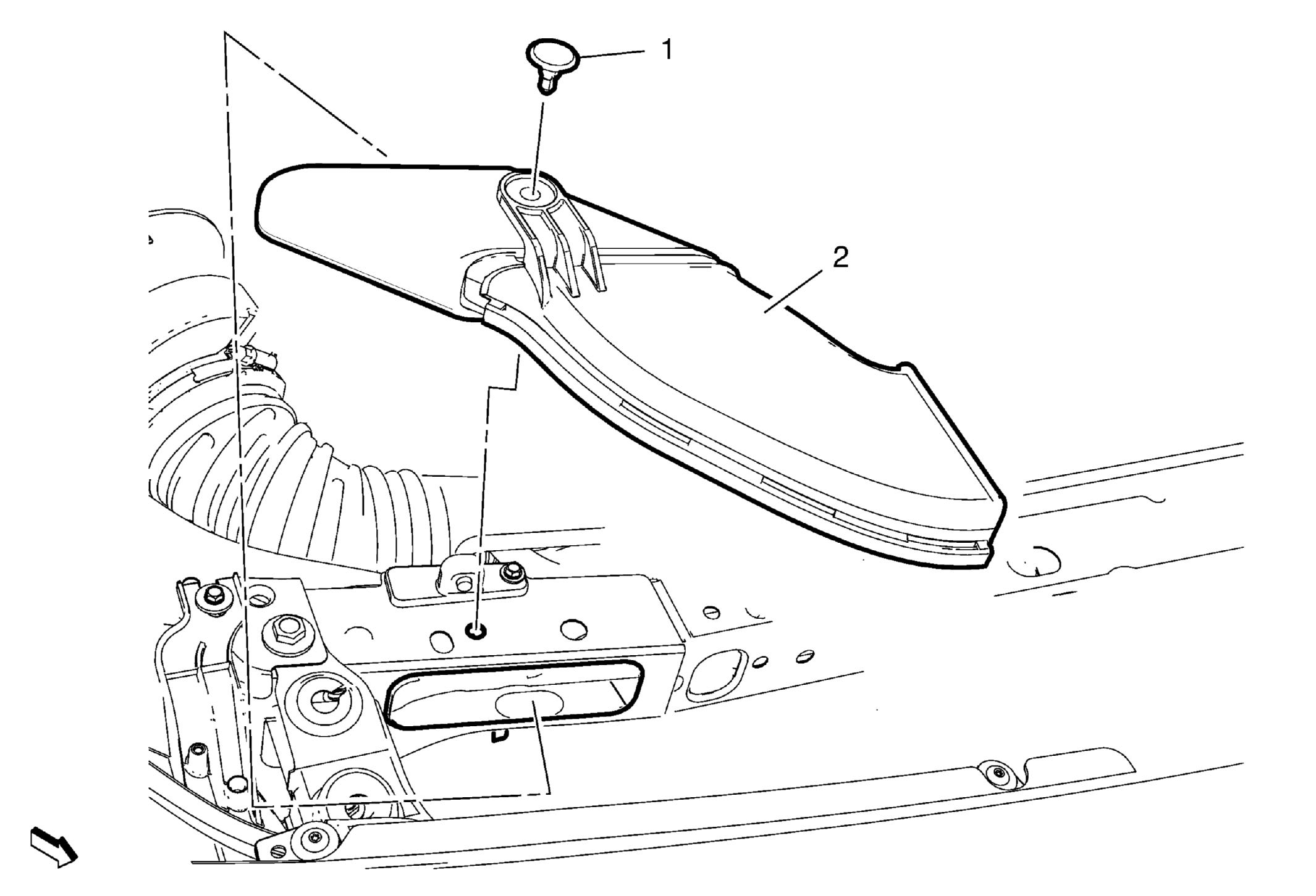

GM3682403Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radiator Air Upper Baffle and Deflector Replacement
1 Front Intake Air Duct Retainer
2 Front Intake Air Duct
