Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
The guide lug (1) must fit the groove.

CAUTION:
Fastener Caution

Exhaust Gas Recirculation Cooler Temperature Sensor - Position 1 (2) - Install and tighten 45 N.m (33 lb ft)
Raise the vehicle.
Courtesy of GENERAL MOTORS COMPANY

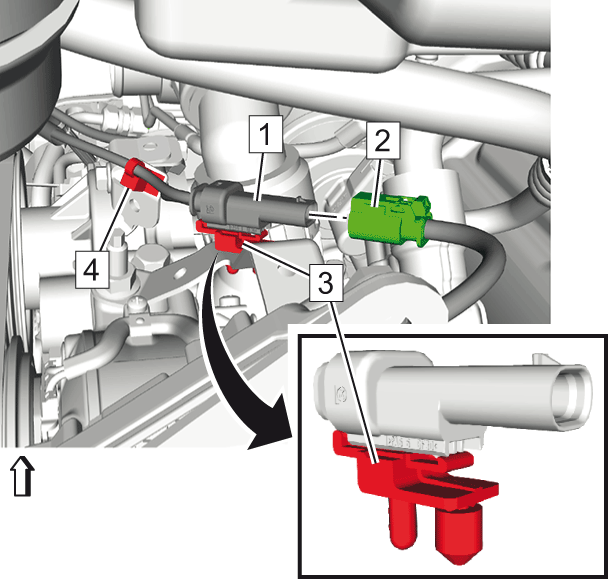

Wiring Harness Clip (4) - Install
Electrical Connector (1) @ Wiring Harness Clip (3) - Install
Exhaust Gas Recirculation Cooler Temperature Sensor Electrical Connector (2) - Connect
Front Bumper Fascia Extension - Install - Front Bumper Fascia Extension Replacement (without Front Bumper Shutter)Front Bumper Fascia Extension Replacement (with Front Bumper Shutter)
Lower the vehicle.
Install the air cleaner outlet duct. Air Cleaner Outlet Duct Replacement
