Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Emission Reduction Fluid Tank Shield - Remove - Emission Reduction Fluid Tank Shield Replacement (Notchback) Emission Reduction Fluid Tank Shield Replacement (Hatchback)
Courtesy of GENERAL MOTORS COMPANY

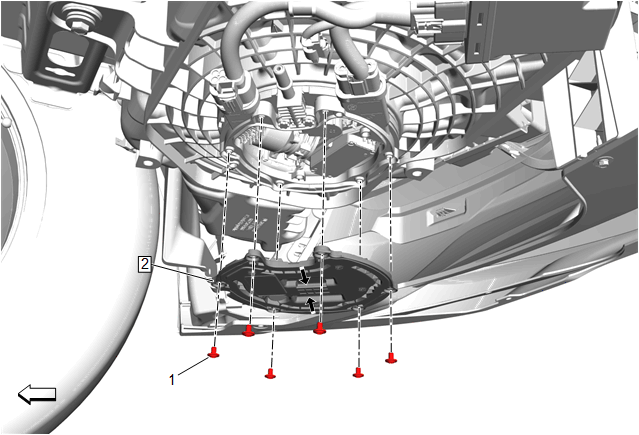

Emission Reduction Fluid Supply Pump Module Cover Bolt (1) - Remove [6x]

NOTE:

Remove the cover by using the handling area indicated by the arrows.

Emission Reduction Fluid Supply Pump Module Cover (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

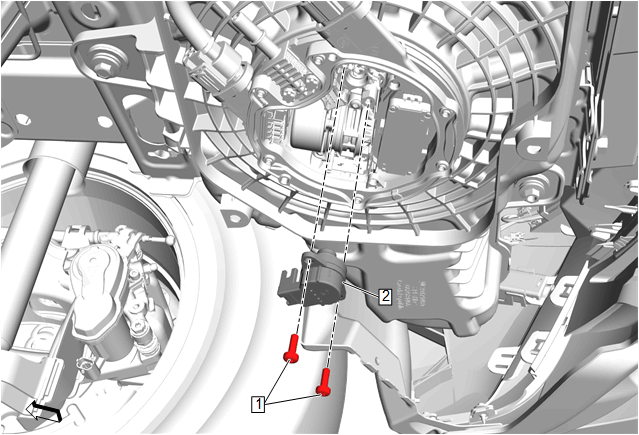

Emission Reduction Fluid Tank Pressure Sensor Bolt (1) - Remove [2x]
Emission Reduction Fluid Tank Pressure Sensor (2) - Remove
