Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Before performing the first steps, review the Emission Reduction Fluid and Emission Reduction Fluid Handling .
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Fuel Tank - Remove - Fuel Tank Replacement
- Rear Axle - Remove - Rear Axle Replacement (Watt Linkage)Rear Axle Replacement (Compound Crank)

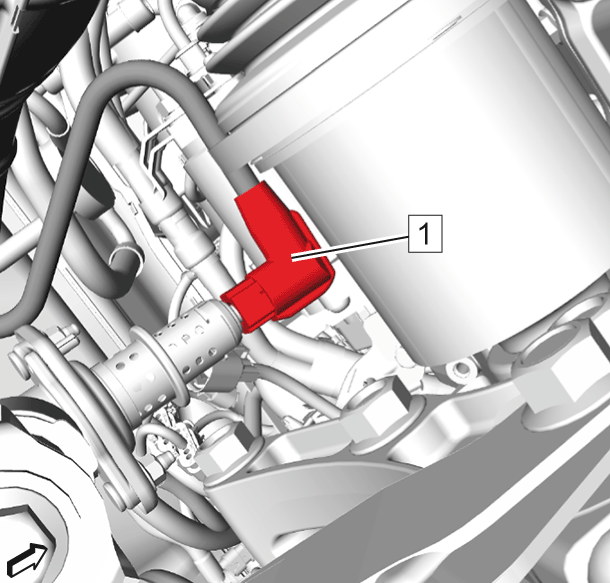

Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Close all open connections with the suitable closure plugs.

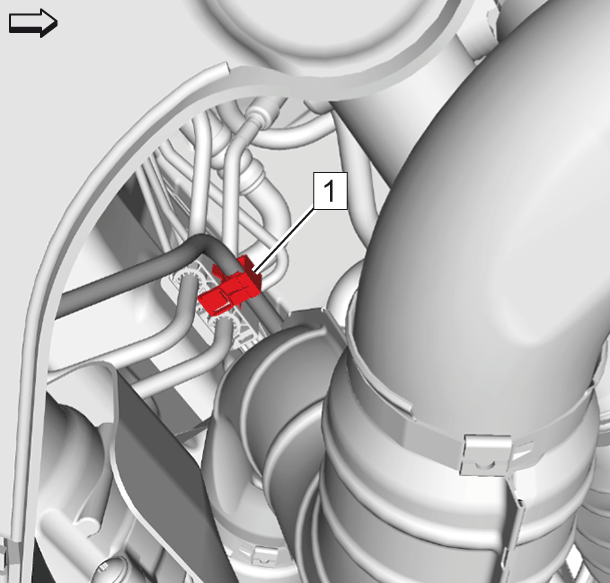

Clip (1) - Remove

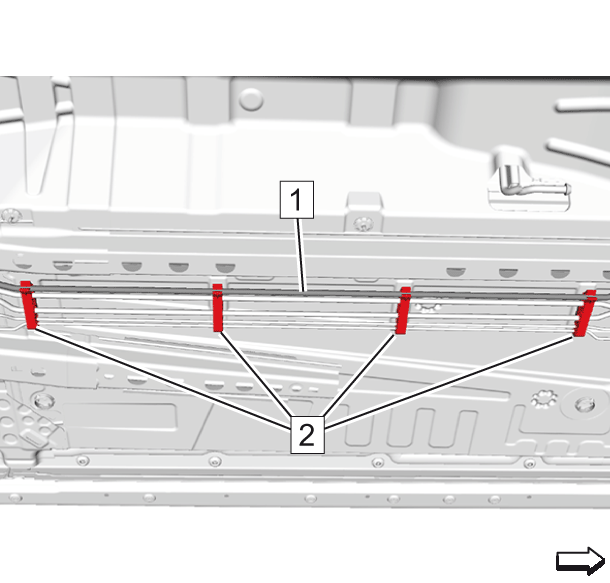

Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (1) @ Retainer Clip (2) - Unclip [4x]

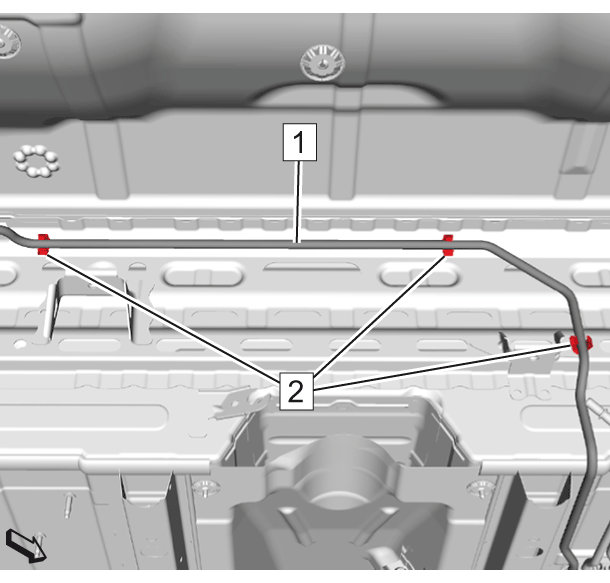

Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (1) @ Clip (2) - Unclip [3x]

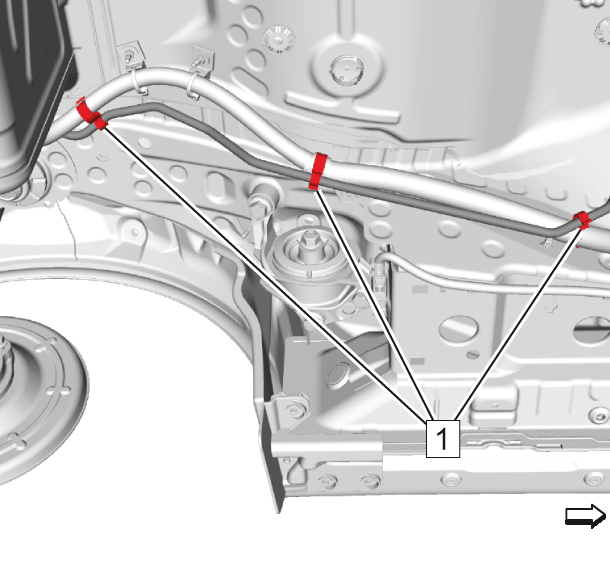

Clip (1) - Remove [3x]
Clip (2) - Remove

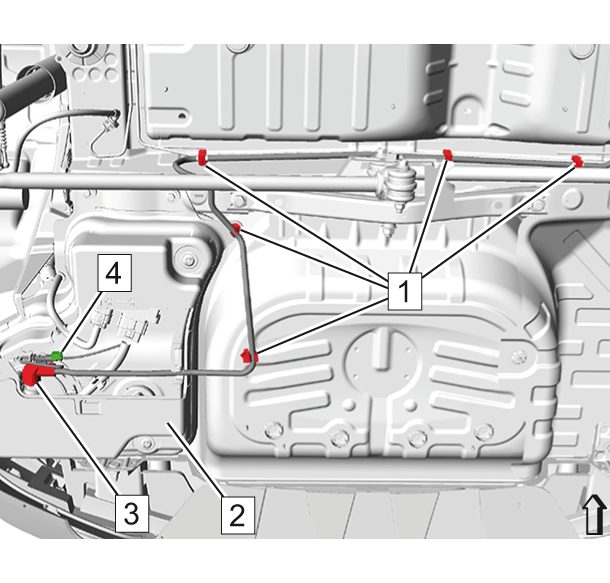

- Remove the emission reduction fluid shield door (1).
Disconnect the electrical connector. (4)
- Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (3) - Disconnect
- Close all open connections with the suitable closure plugs.
- Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (3) @ Clip (1) - Unclip [5x]
- Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (3) @ Emission Reduction Fluid Tank Shield (2) - Unclip
- Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe @ Vehicle - Remove
