Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Crankshaft Position Sensor (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Slightly lift the crankshaft position sensor to install the retainer spring.

Install the crankshaft position sensor retainer spring (2) into the correct channel (1) of the crankshaft position sensor.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Crankshaft Position Sensor Bolt (1) - Install and tighten 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

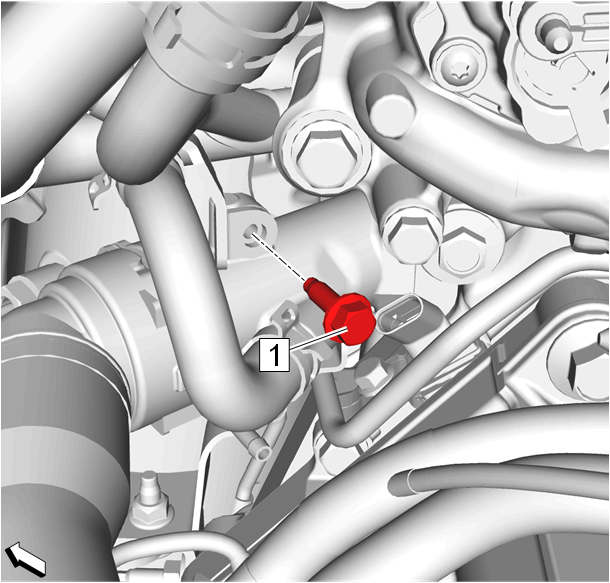

Thermostat Bypass Pipe Bolt (1) - Install and tighten 10 N.m (89 lb in)
Water Outlet Replacement (LH7) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

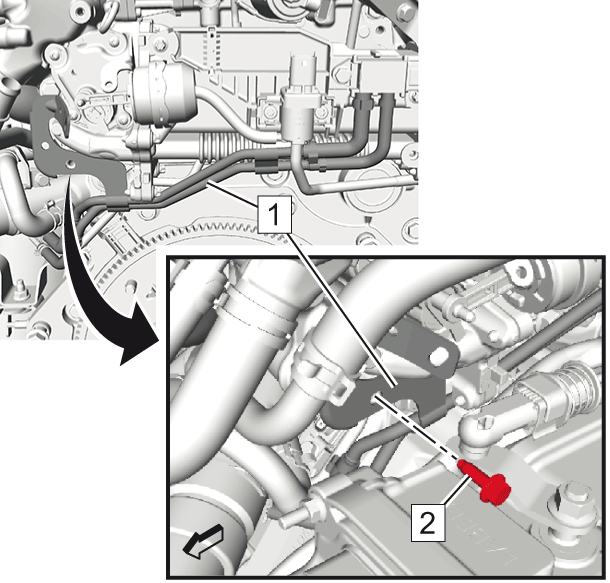

Exhaust Pressure Sensor Pipe Bracket (1) - Reposition
Exhaust Pressure Sensor Pipe Bolt (2) - Install and tighten 10 N.m (89 lb in)
Raise the vehicle.
Install the catalytic converter. Catalytic Converter Replacement
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

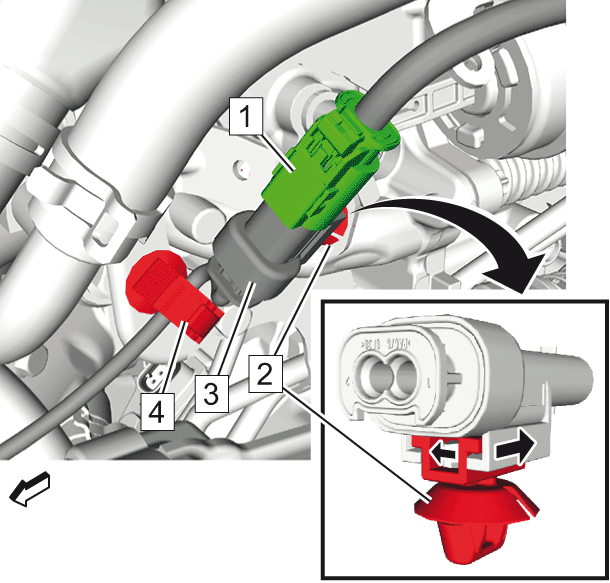

Connect the electrical connector. (1)
Exhaust Temperature Sensor Electrical Connector (3) @ Wiring Harness Clip (2) - Install
Close the wiring harness clip (4).
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Outlet Air Hose (1) @ Throttle Body (2) - Install
Quick Connector Clamp (3) - Install
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Perform the Crankshaft Position Variation Learn. Crankshaft Position Variation Learn
