Installation Procedure

WARNING: This page is about a different variant/trim than selected.

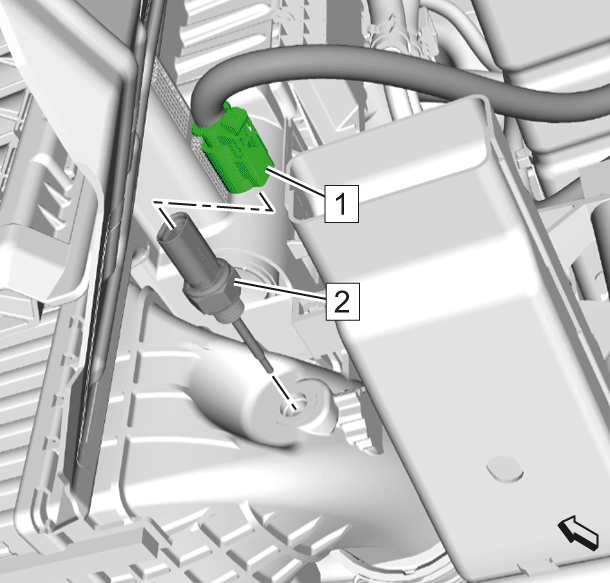

  1. GM4537932Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Charge Air Temperature Sensor (2) - Install and tighten 19 N.m (14 lb ft)

  2. Connect the electrical connector. (1)
  3. Front Bumper Fascia Extension - Install - Front Bumper Fascia Extension Replacement (without Front Bumper Shutter)Front Bumper Fascia Extension Replacement (with Front Bumper Shutter)
