Exhaust Front Underbody Heat Shield Replacement

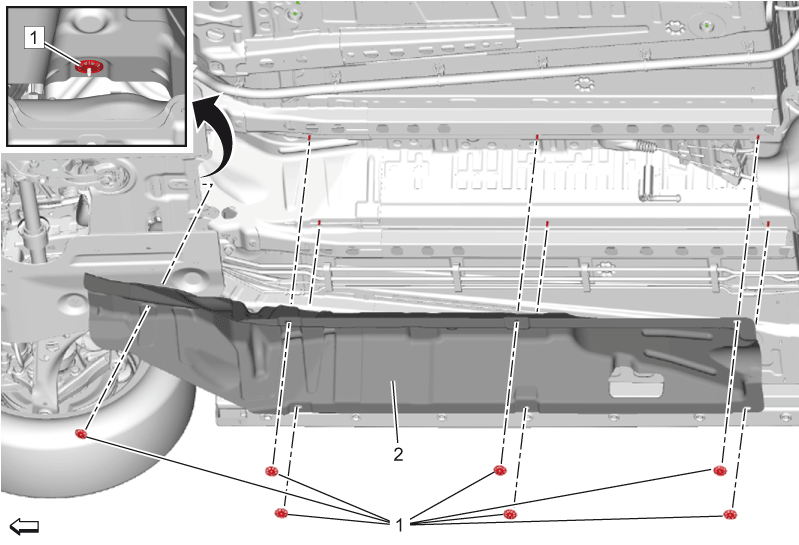

GM3665676Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Exhaust Service Warning .

WARNING:

Refer to Protective Goggles and Glove Warning .

Preliminary Procedures

  1. Exhaust Front Pipe Replacement (1.4L LE2) Exhaust Front Pipe Replacement (1.6L Diesel LH7)
  2. Exhaust Muffler Replacement (1.4L LE2) Exhaust Muffler Replacement (1.6L Diesel LH7)
1 Exhaust Front Underbody Heat Shield Retainer [7x]
2 Exhaust Front Underbody Heat Shield
