Radiator Outlet Hose Replacement (1.6L Diesel LH7)
Radiator Outlet Hose Replacement (1.6L Diesel LH7)
Courtesy of GENERAL MOTORS COMPANY

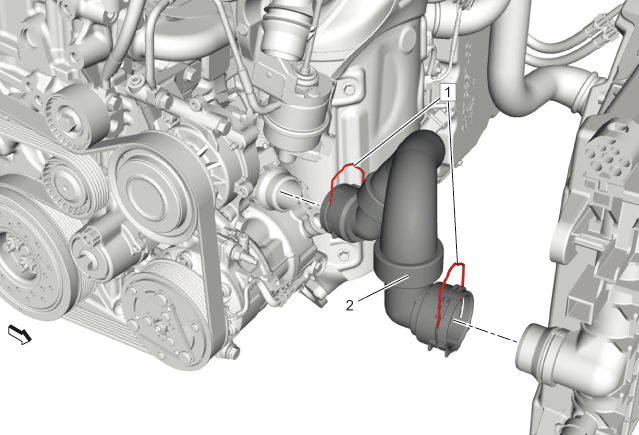

Callout
Component Name
Preliminary Procedures
Cooling System Draining and Filling
Air Cleaner Outlet Duct Replacement
Rear Intake Air Duct Replacement
Charge Air Cooler Inlet Air Hose Replacement
1
Radiator Outlet Hose Quick Connector Clamp [2x]
2
Radiator Outlet Hose
