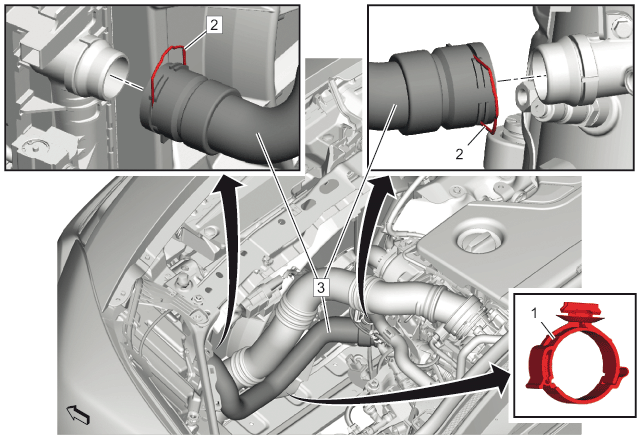

Radiator Inlet Hose Replacement (1.6L Diesel LH7)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Cooling System Draining and Filling |
|
| (1) | Radiator Inlet Hose Retainer |
| (2) | Radiator Outlet Hose Quick Connector Clamp (Qty: 2) |
| (3) | Radiator Inlet Hose |
