Rear Fascia Harness Routing

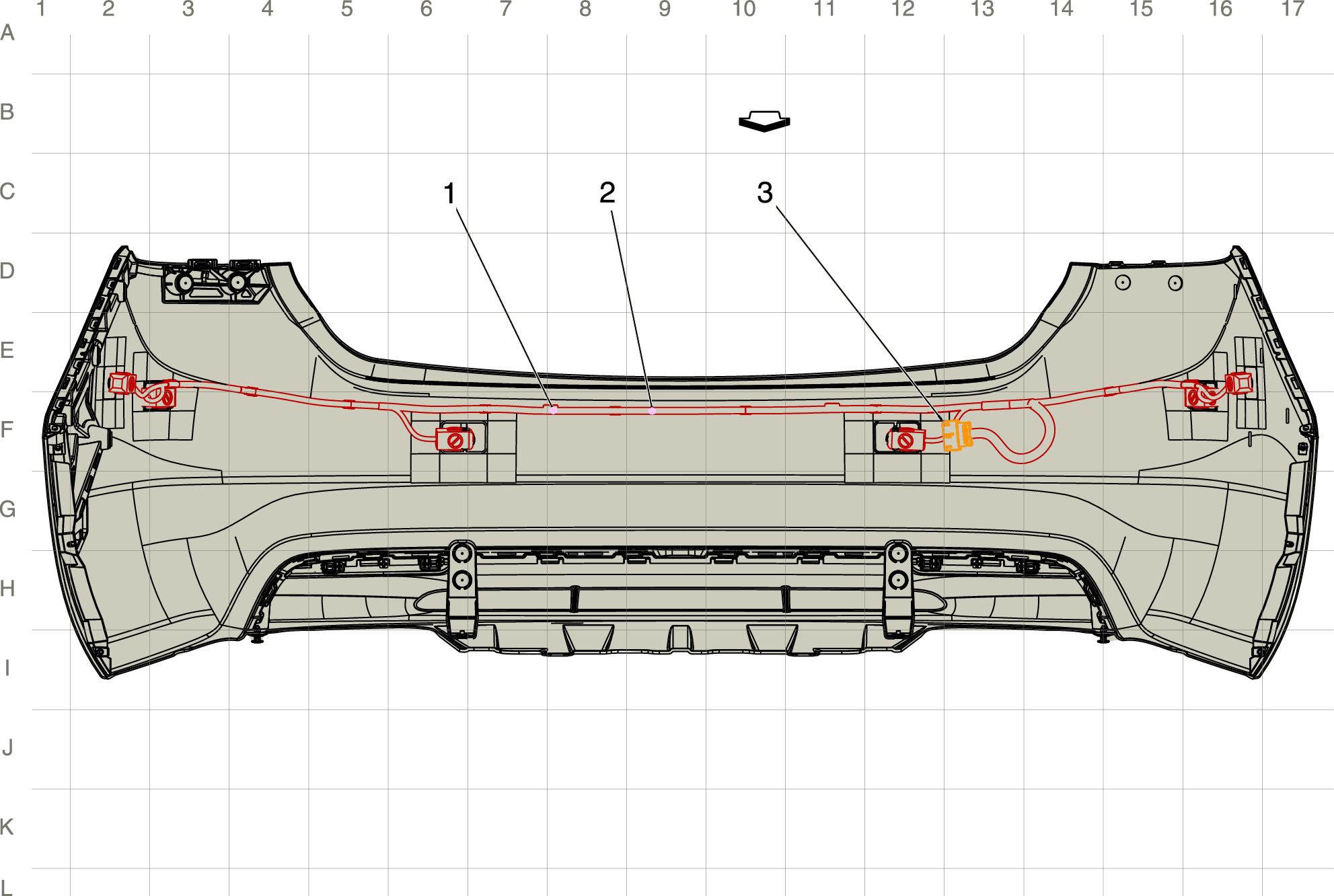

GM3768003Courtesy of GENERAL MOTORS COMPANY
Items
1. J413 Rear Bumper Harness
2. J412 Rear Bumper Harness
3. X402 Rear Fascia Harness to Rear Body Harness X402 Rear Fascia Harness to Rear Body Harness (Hatchback)X402 Rear Fascia Harness to Rear Body Harness (Notchback)
