Rear Compartment Lid Harness Routing (Notchback)

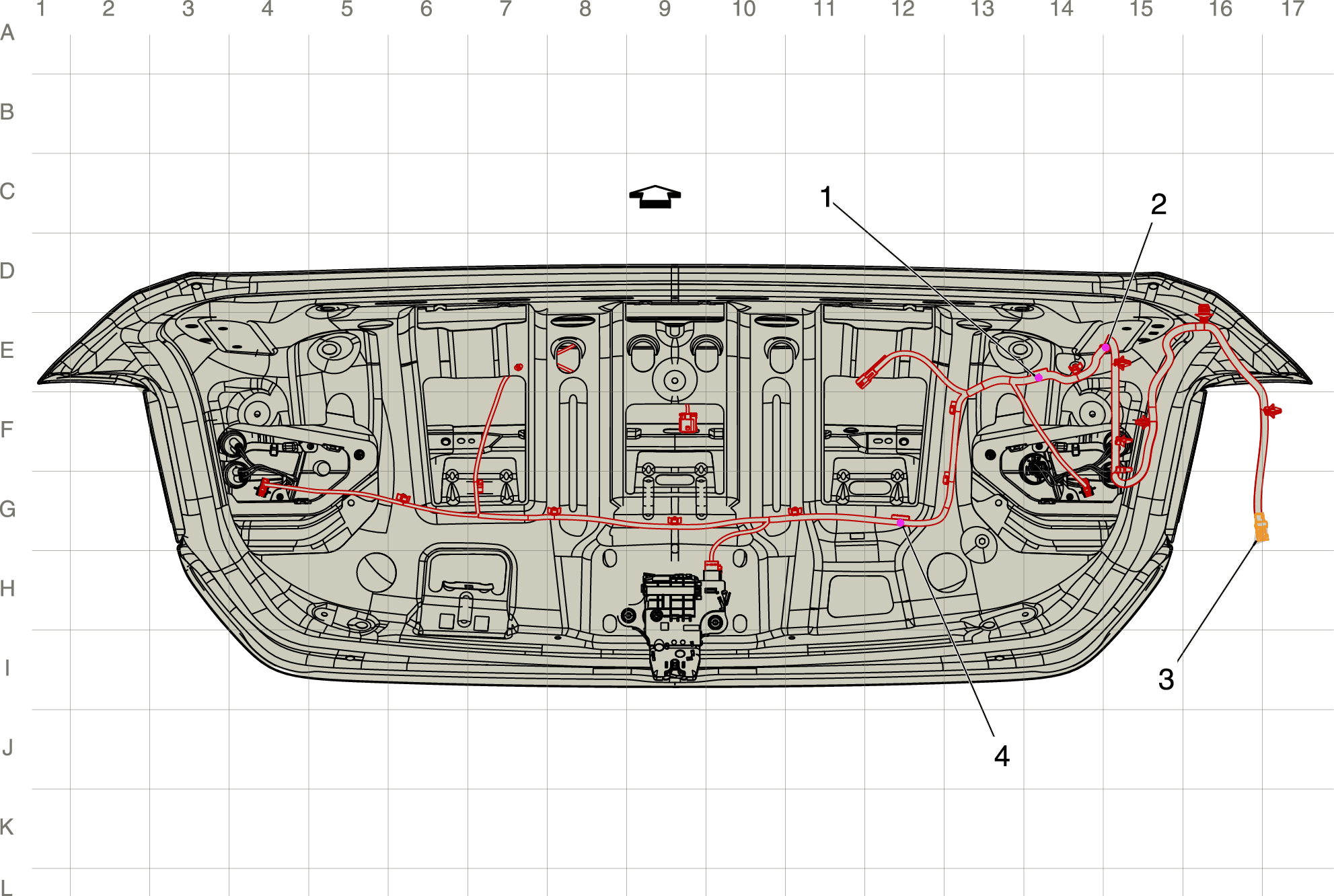

GM3768002Courtesy of GENERAL MOTORS COMPANY
Items
1. J902 Rear Compartment Lid
2. J901 Rear Compartment Lid
3. X900 Liftgate Extension Harness to Body Harness X900 Rear Compartment Lid Harness to Body Harness (Notchback)
4. J903 Rear Compartment Lid
