Rear Compartment Lid Harness Routing (Hatchback)

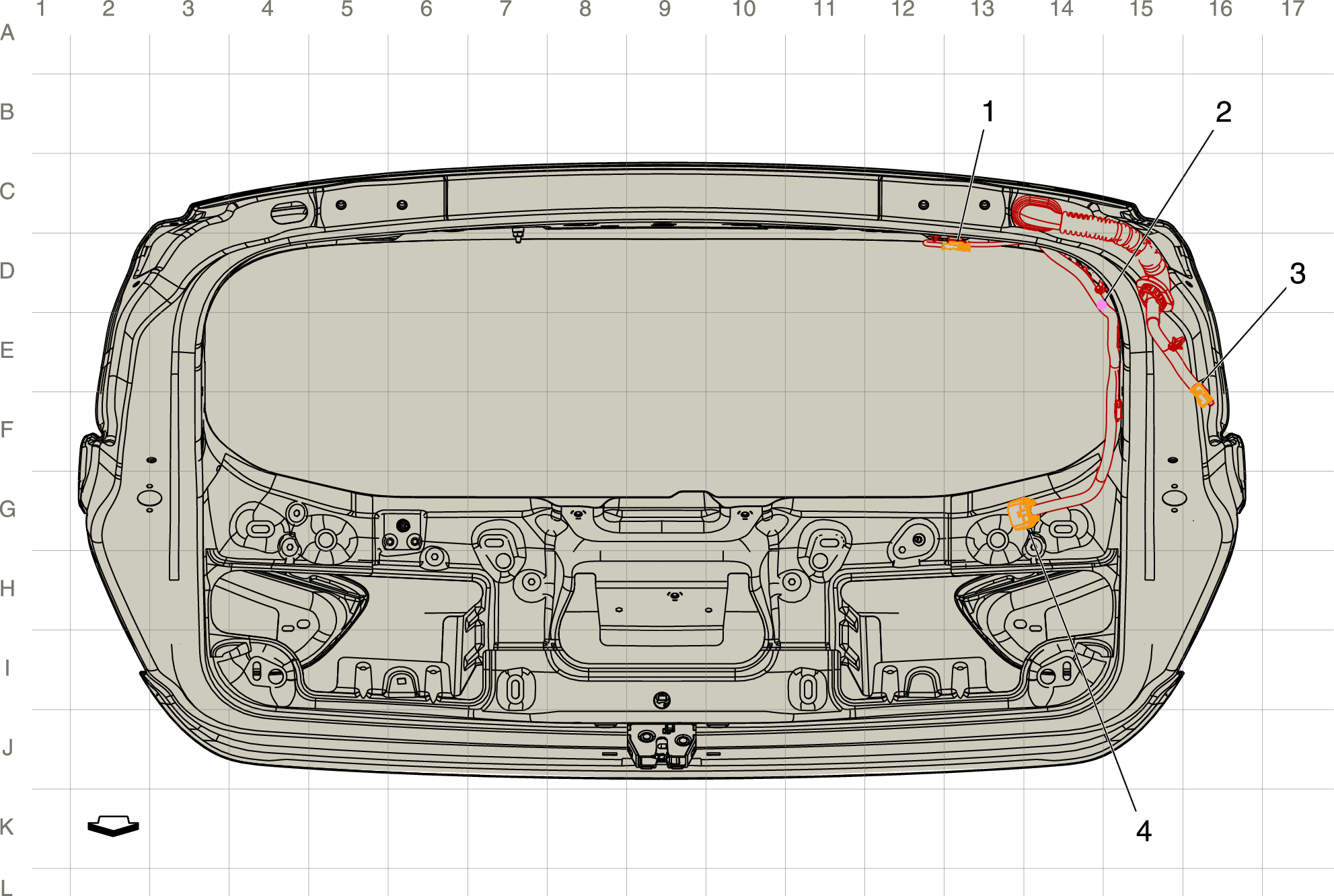

GM4375028Courtesy of GENERAL MOTORS COMPANY
Items
1. X902 Center High Mount Stop Lamp Harness to Liftgate Extension Harness (Hatchback) X902 Center High Mount Stop Lamp Harness to Liftgate Extension Harness
2. J906 Liftgate Extension Harness (Hatchback)
3. X900 Liftgate Extension Harness to Body Harness X900 Liftgate Extension Harness to Body Harness (Hatchback)
4. X901 Liftgate Extension Harness to Liftgate Harness (Hatchback) X901 Liftgate Extension Harness to Liftgate Harness (Hatchback)
