Rear Compartment Harness Routing

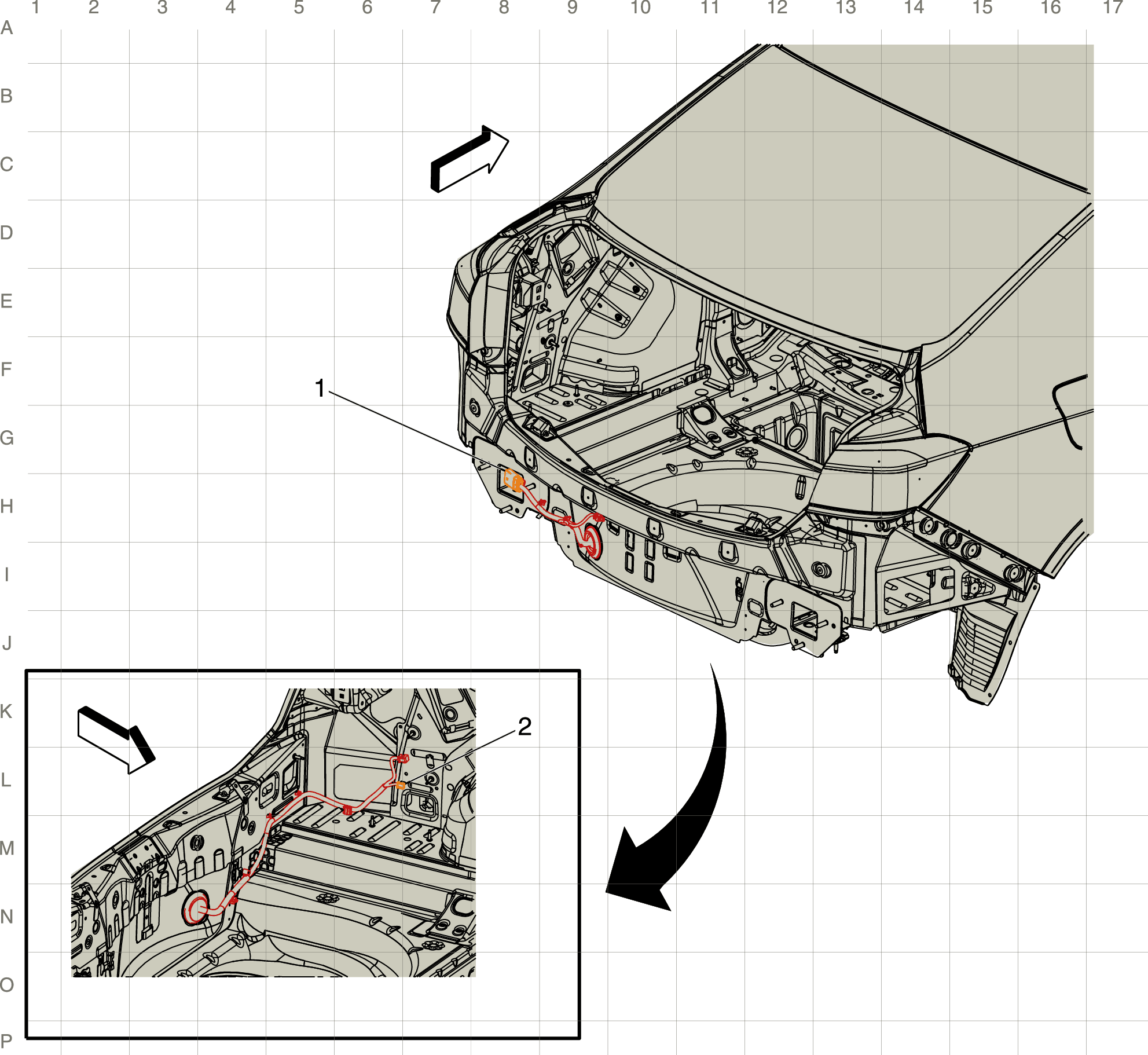

GM3768001Courtesy of GENERAL MOTORS COMPANY
Items
1. X402 Rear Fascia Harness to Rear Body Harness X402 Rear Fascia Harness to Rear Body Harness (Hatchback)X402 Rear Fascia Harness to Rear Body Harness (Notchback)
2. X404 Rear Body Harness to Body Harness X404 Rear Body Harness to Body Harness (Hatchback)X404 Rear Body Harness to Body Harness (Notchback)
