Rear Compartment - Body Harness Routing Driver Side

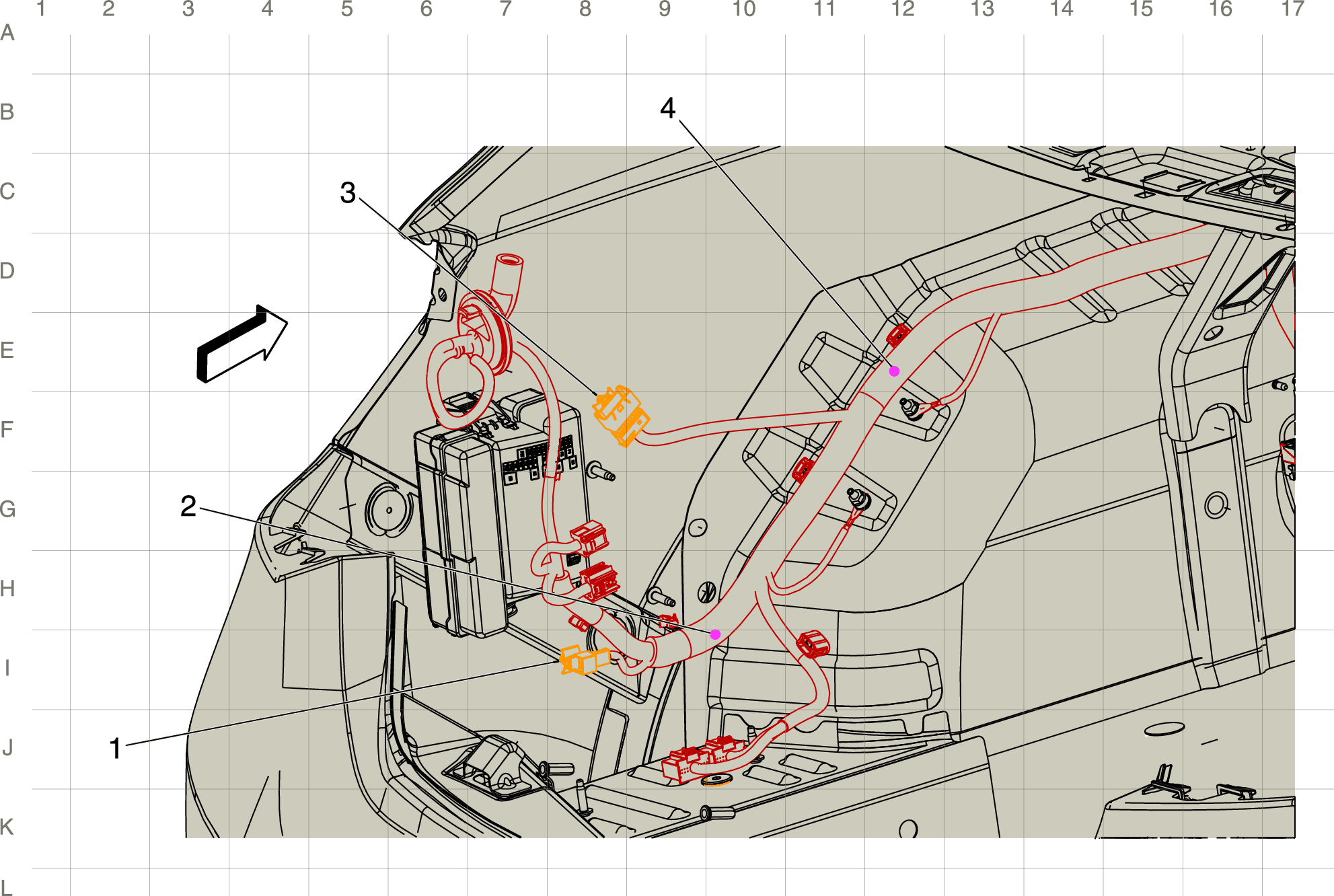

GM3767999Courtesy of GENERAL MOTORS COMPANY
Items
1. X404 Rear Body Harness to Body Harness X404 Rear Body Harness to Body Harness (Hatchback)X404 Rear Body Harness to Body Harness (Notchback)
2. J404 Body Harness
3. X900 Liftgate Extension Harness to Body Harness X900 Liftgate Extension Harness to Body Harness (Hatchback)X900 Rear Compartment Lid Harness to Body Harness (Notchback)
4. J401 Body Harness
