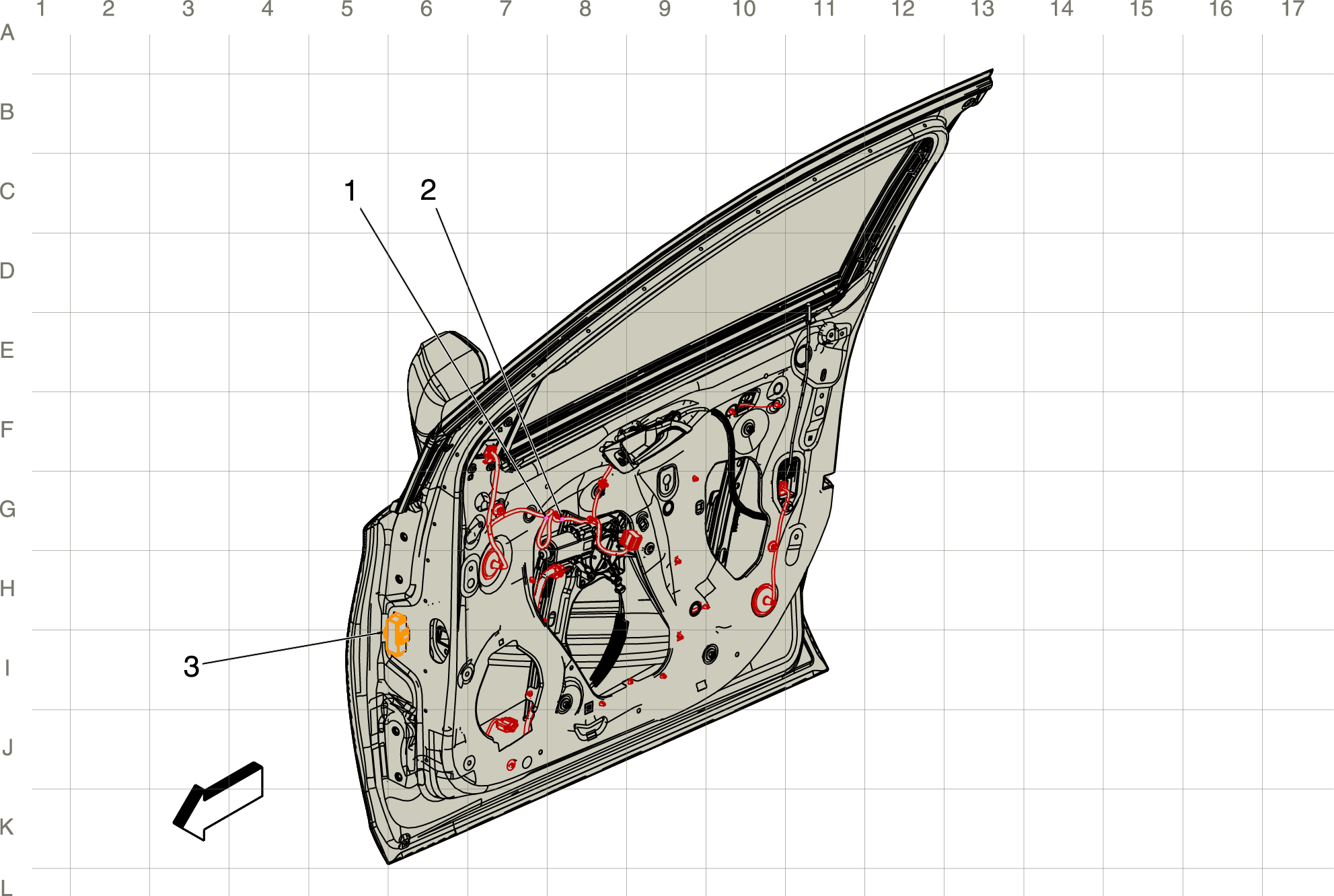

Passenger Door Harness Routing

GM3767995Courtesy of GENERAL MOTORS COMPANY
Items
1. J604 Passenger Door Harness
2. J602 Passenger Door Harness
3. X600 Passenger Door Harness to Body Harness (42 cavities) X600 Passenger Door Harness to Body Harness
