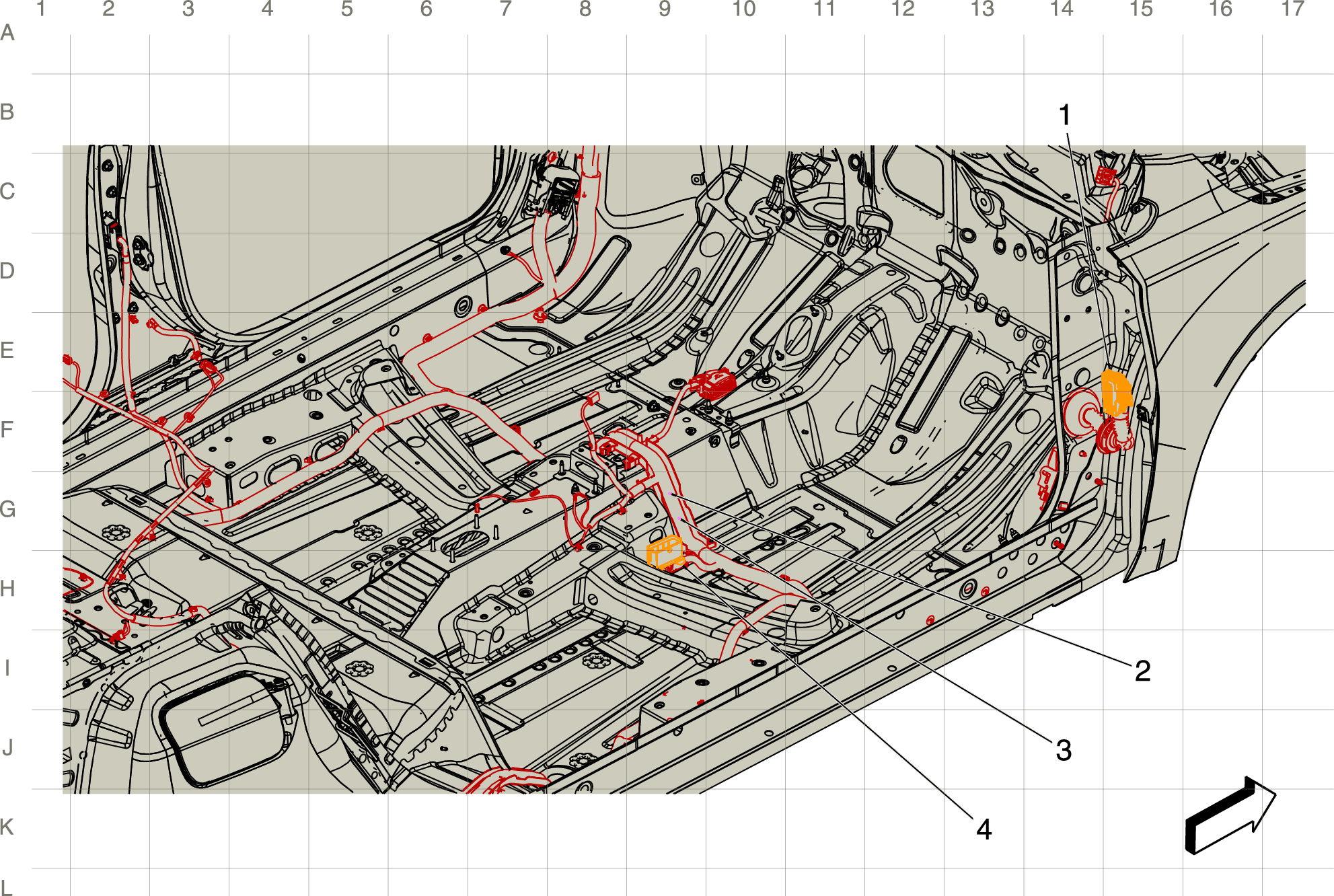

Passenger Compartment Harness Routing-Passenger Side

GM4282474Courtesy of GENERAL MOTORS COMPANY
Items
1. X600 Passenger Door Harness to Body Harness (42 cavities) X600 Passenger Door Harness to Body Harness
2. J333 Body Harness
3. J334 Body Harness
4. X320 Passenger Seat Harness to Body Harness X320 Passenger Seat Harness to Body Harness
