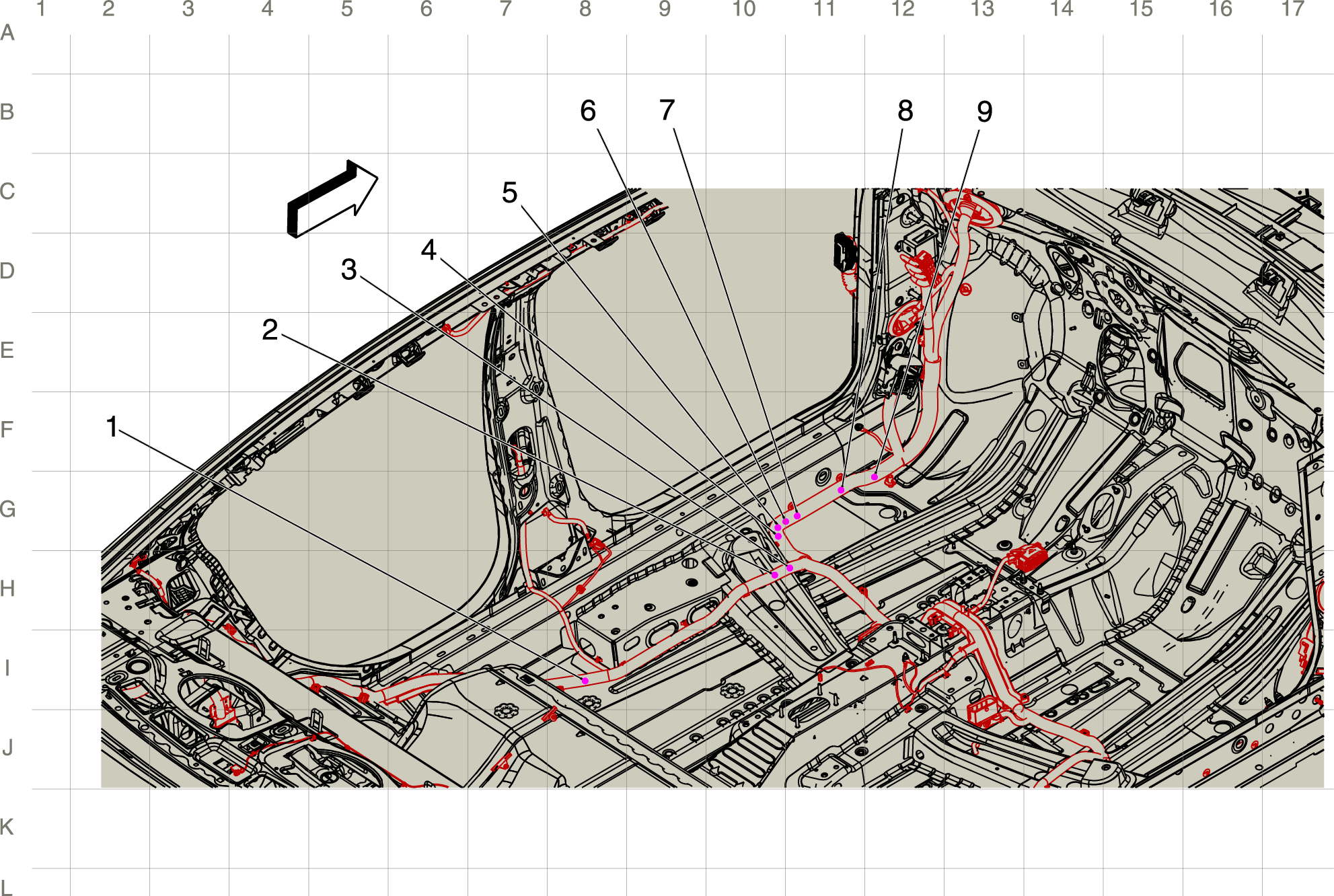

Passenger Compartment Harness Routing-Driver Side

GM4287761Courtesy of GENERAL MOTORS COMPANY
Items
1. J331 Body Harness
2. J329 Body Harness
3. J307 Body Harness
4. J324 Body Harness
5. J323 Body Harness
6. J322 Body Harness
7. J321 Body Harness
8. J318 Body Harness
9. J317 Body Harness
