Passenger Compartment Harness Routing-Driver Side Front

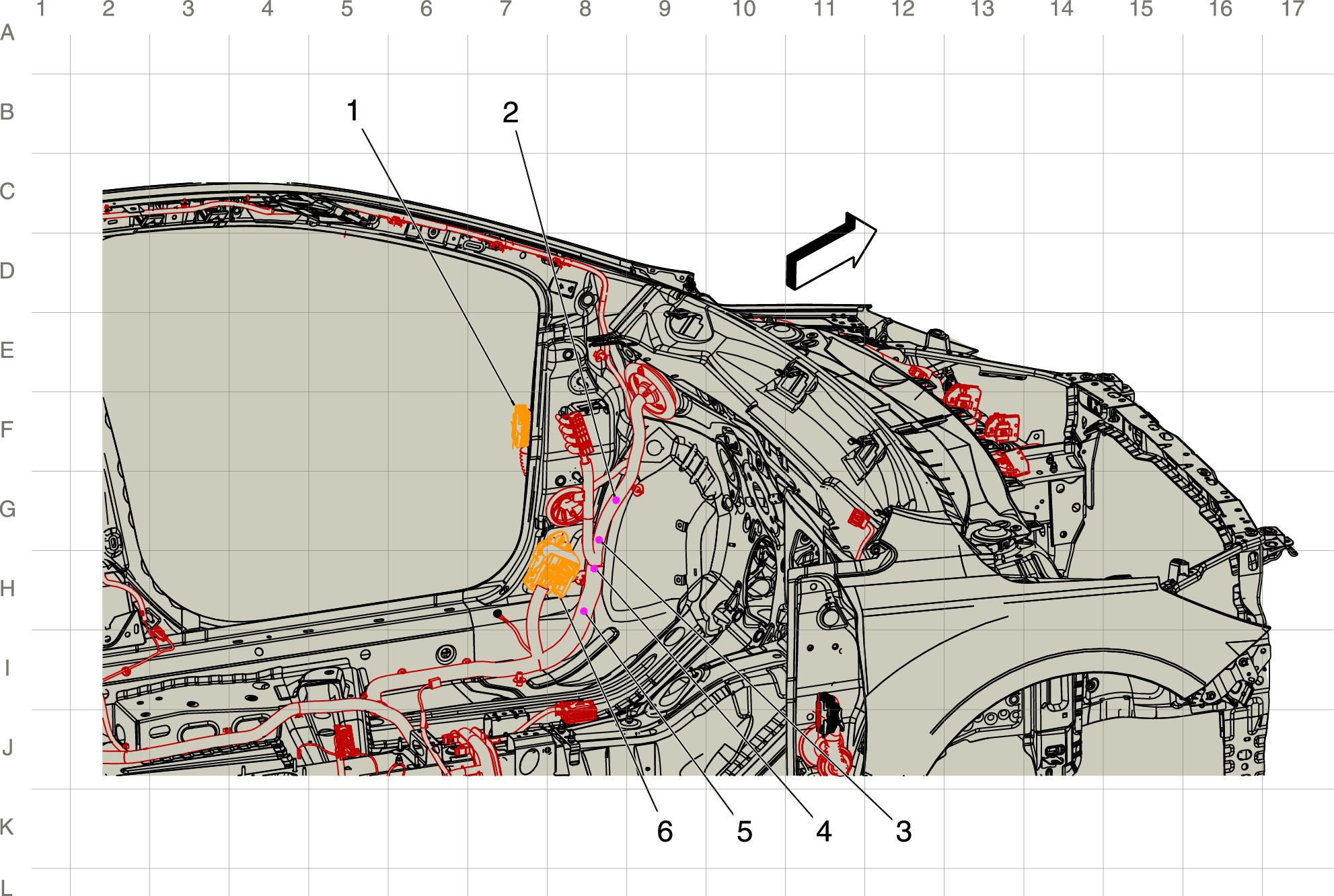

GM5217585Courtesy of GENERAL MOTORS COMPANY
Items
1. X500 Driver Door Harness to Body Harness (41 cavities) X500 Driver Door Harness to Body Harness
2. J232 Body Harness
3. J236 Body Harness
4. J309 Body Harness
5. J311 Body Harness
6. X200 Instrument Panel Harness to Body Harness (102 cavities) X200 Instrument Panel Harness to Body Harness
