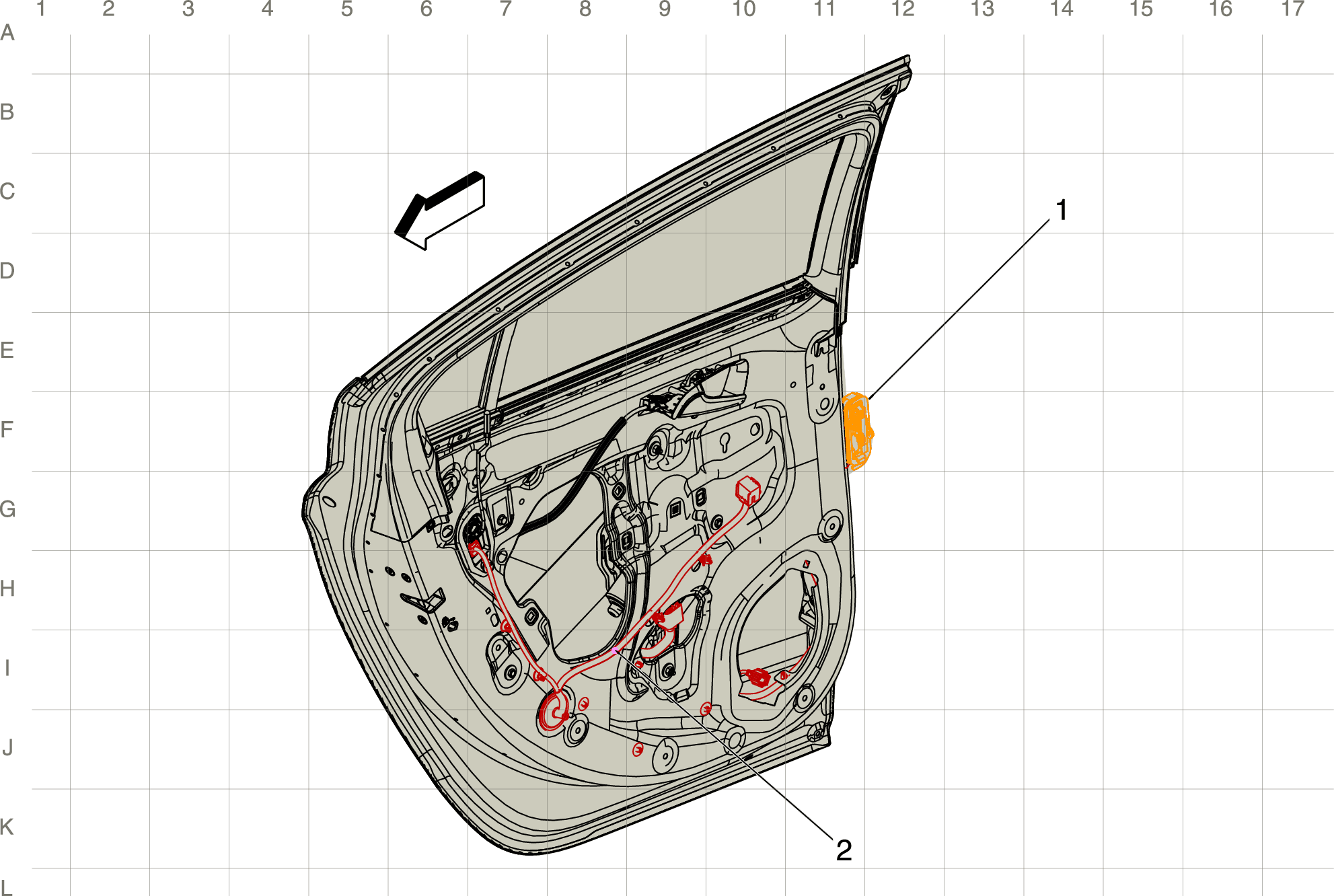

Left Rear Door Harness Routing

GM3767996Courtesy of GENERAL MOTORS COMPANY
Items
1. X700 Left Rear Door Harness to Body Harness (20 cavities) X700 Left Rear Door Harness to Body Harness
2. J701 Left Rear Door Harness
