Headliner Harness Routing

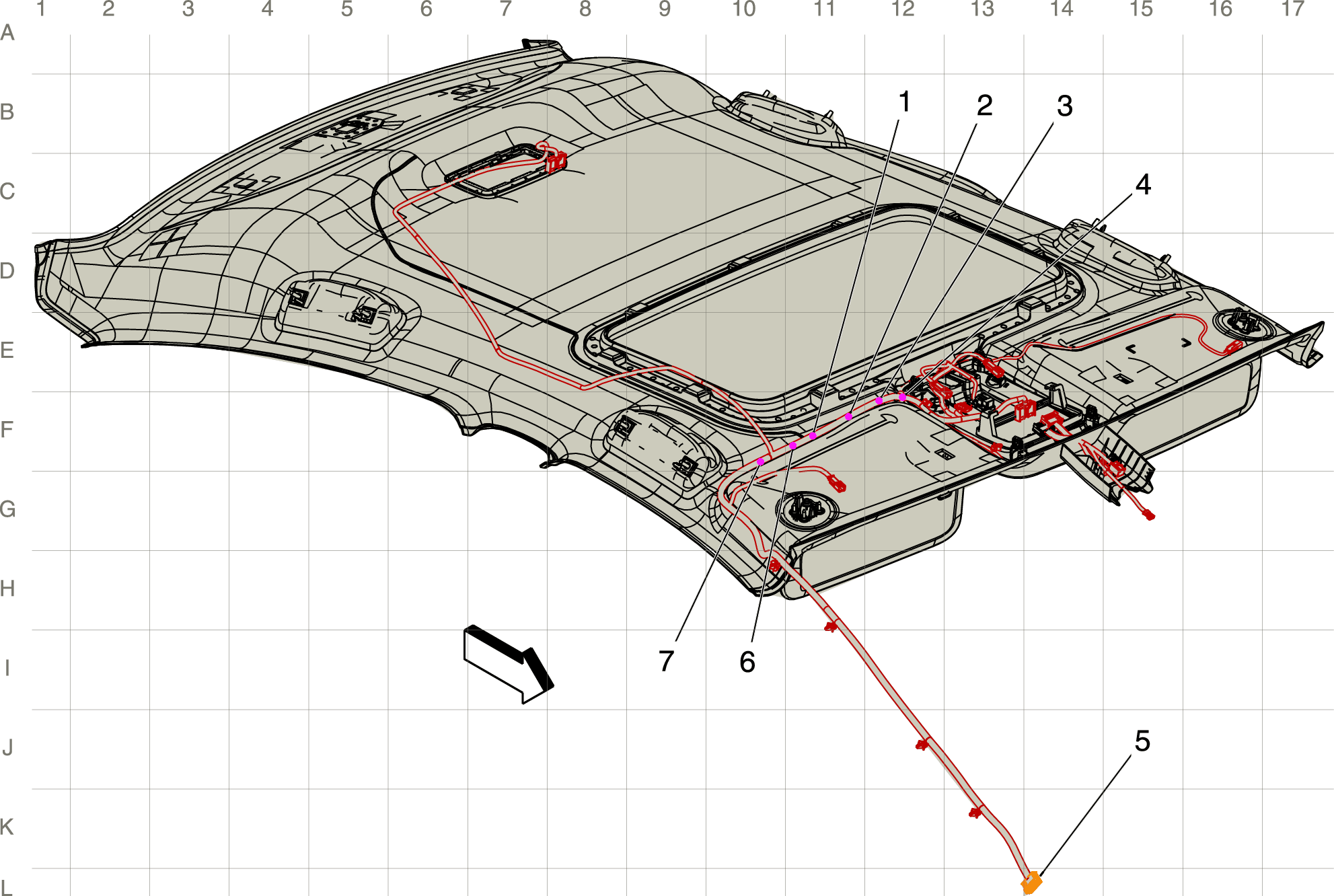

GM4282476Courtesy of GENERAL MOTORS COMPANY
Items
1. J344 Headliner Harness
2. J351 Headliner Harness
3. J346 Headliner Harness
4. J347 Headliner Harness
5. X211 Headliner Harness to Body Harness (10 cavities) X211 Headliner Harness to Body Harness
6. J322 Body Harness
7. J350 Headliner Harness
