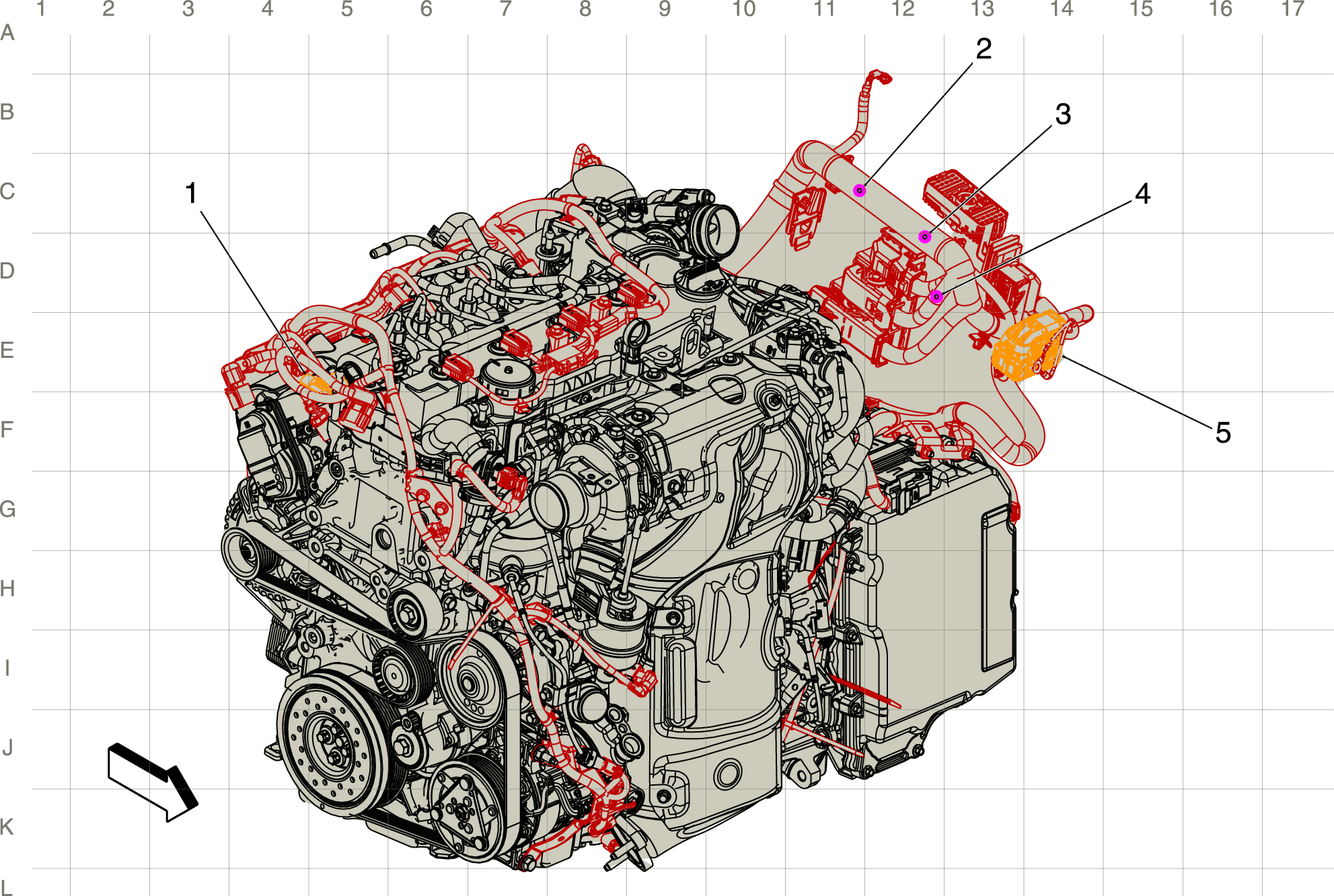

Engine Harness Routing View - Right Front (LH7)

GM4375058Courtesy of GENERAL MOTORS COMPANY
Items
1. X160 Engine Harness to Fuel Injector Harness (12 cavities) X160 Engine Harness to Fuel Injector Harness
2. J144 Engine Harness
3. J133 Engine Harness
4. J119 Headlamp
5. X190 Engine Harness to Body Harness X190 Engine Harness to Body Harness (LH7)
