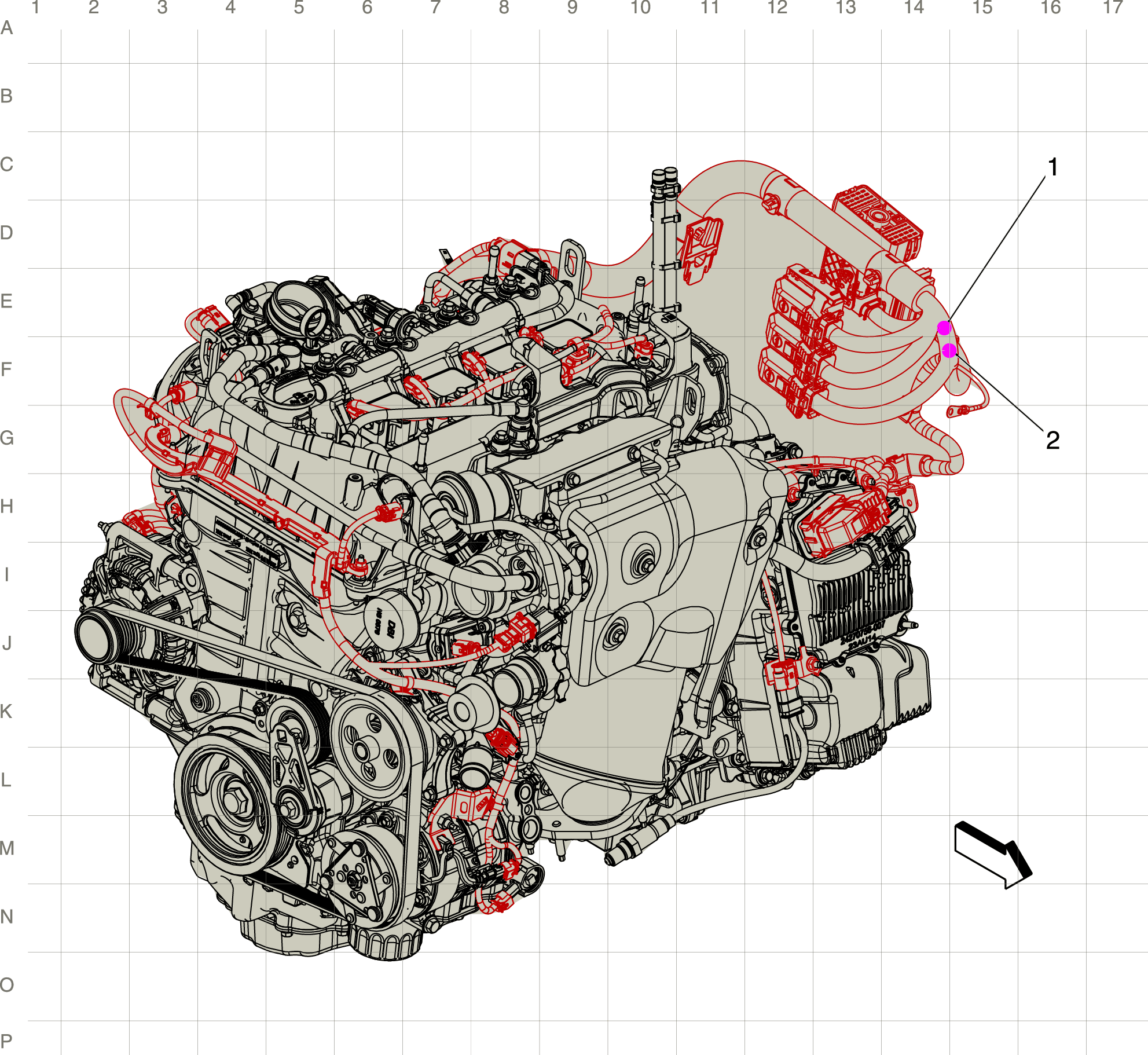

Engine Harness Routing View - Right Front (LE2/LEX)

GM4004117

Courtesy of GENERAL MOTORS COMPANY

Items
1. J104 Front Fascia Harness
2. J109 Engine Harness
