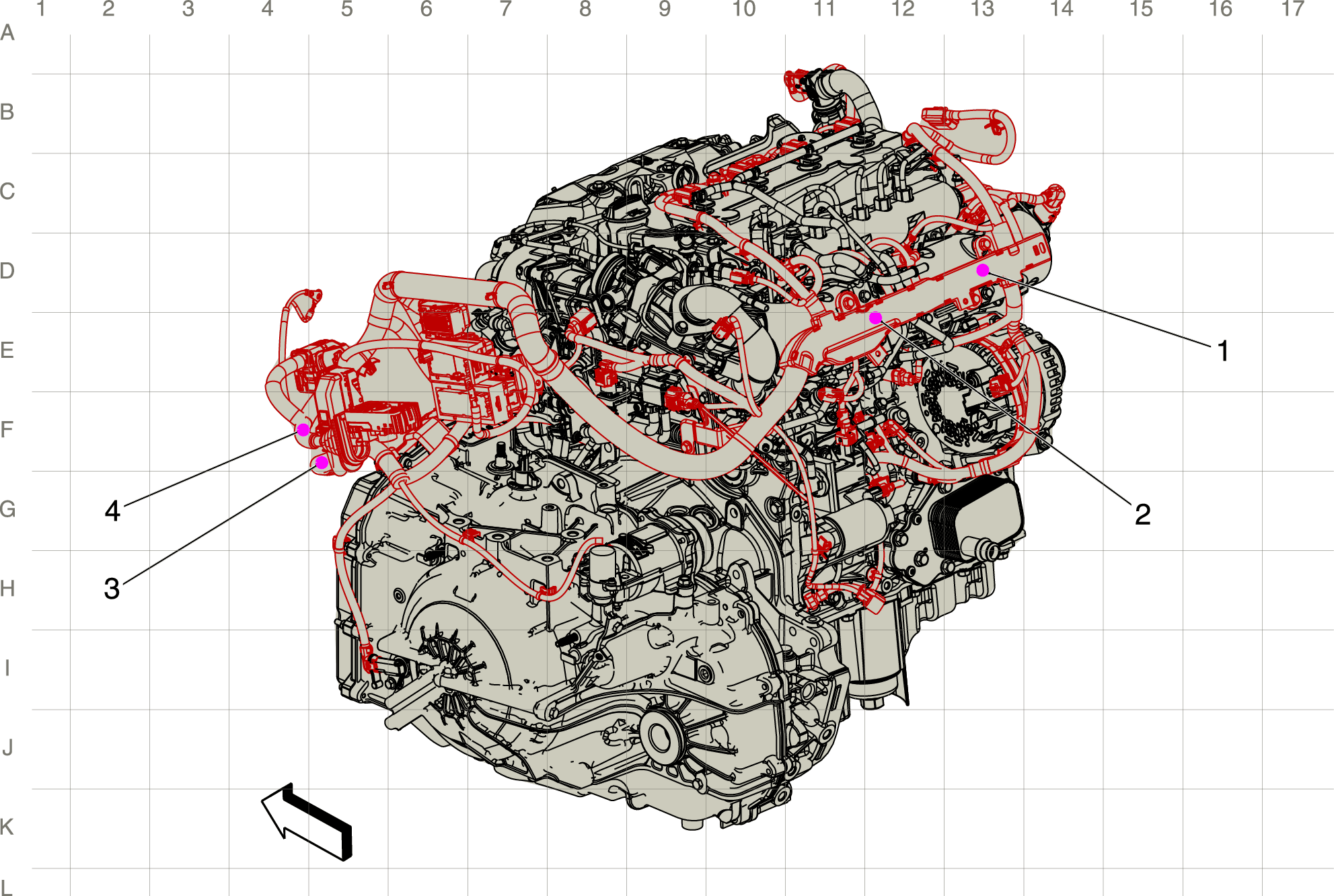

Engine Harness Routing View - Left Rear (LH7)

GM4375057

Courtesy of GENERAL MOTORS COMPANY

Items
1. J111 Engine Harness
2. J113 Engine Harness
3. J120 Engine Harness
4. J108 Engine Harness
