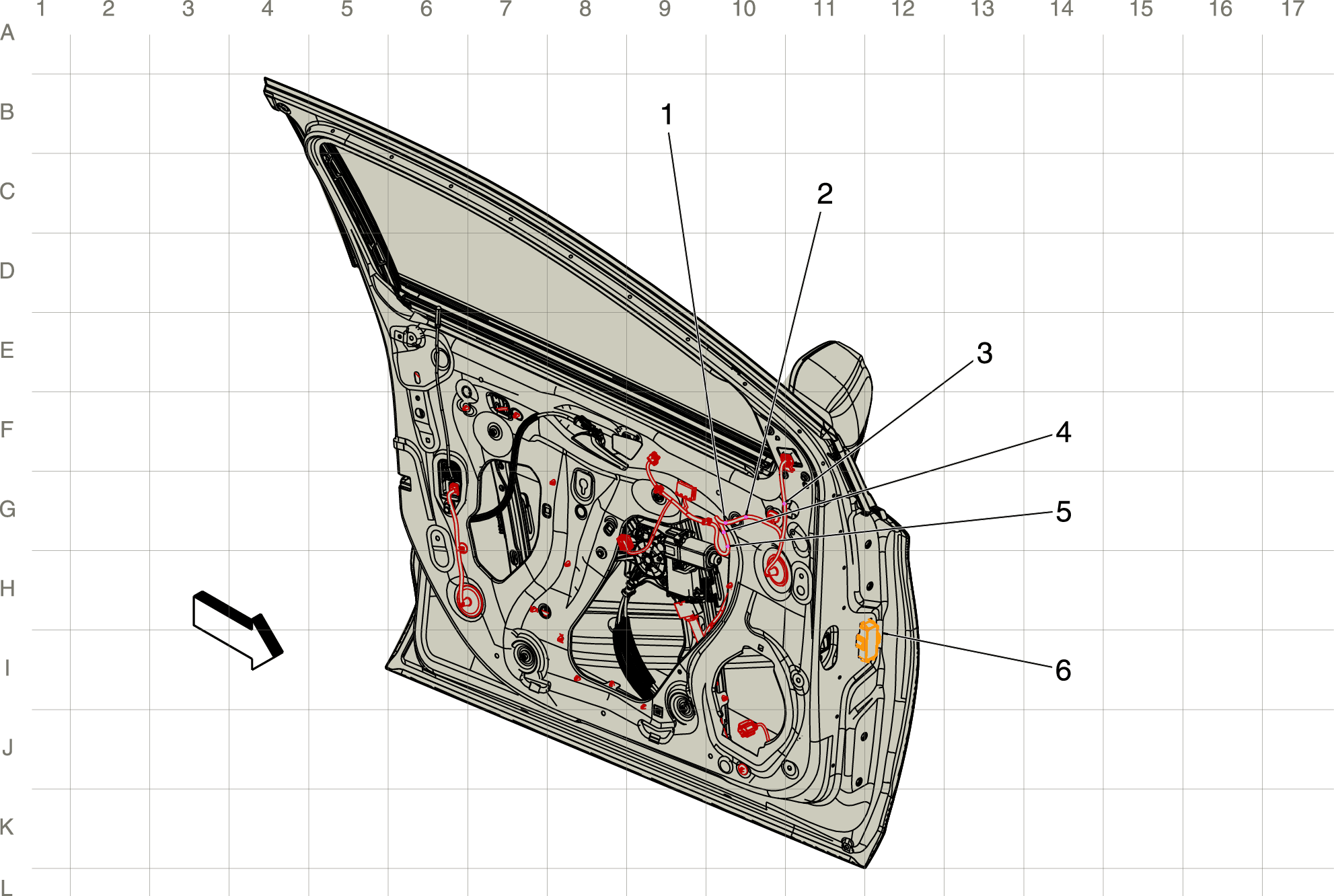

Driver Door Harness Routing

GM4282477Courtesy of GENERAL MOTORS COMPANY
Items
1. J500 Driver Door Harness
2. J502 Driver Door Harness
3. J501 Driver Door Harness
4. J507 Driver Door Harness
5. J504 Driver Door Harness
6. X500 Driver Door Harness to Body Harness (41 cavities) X500 Driver Door Harness to Body Harness
