Body Harness Routing - Engine Compartment

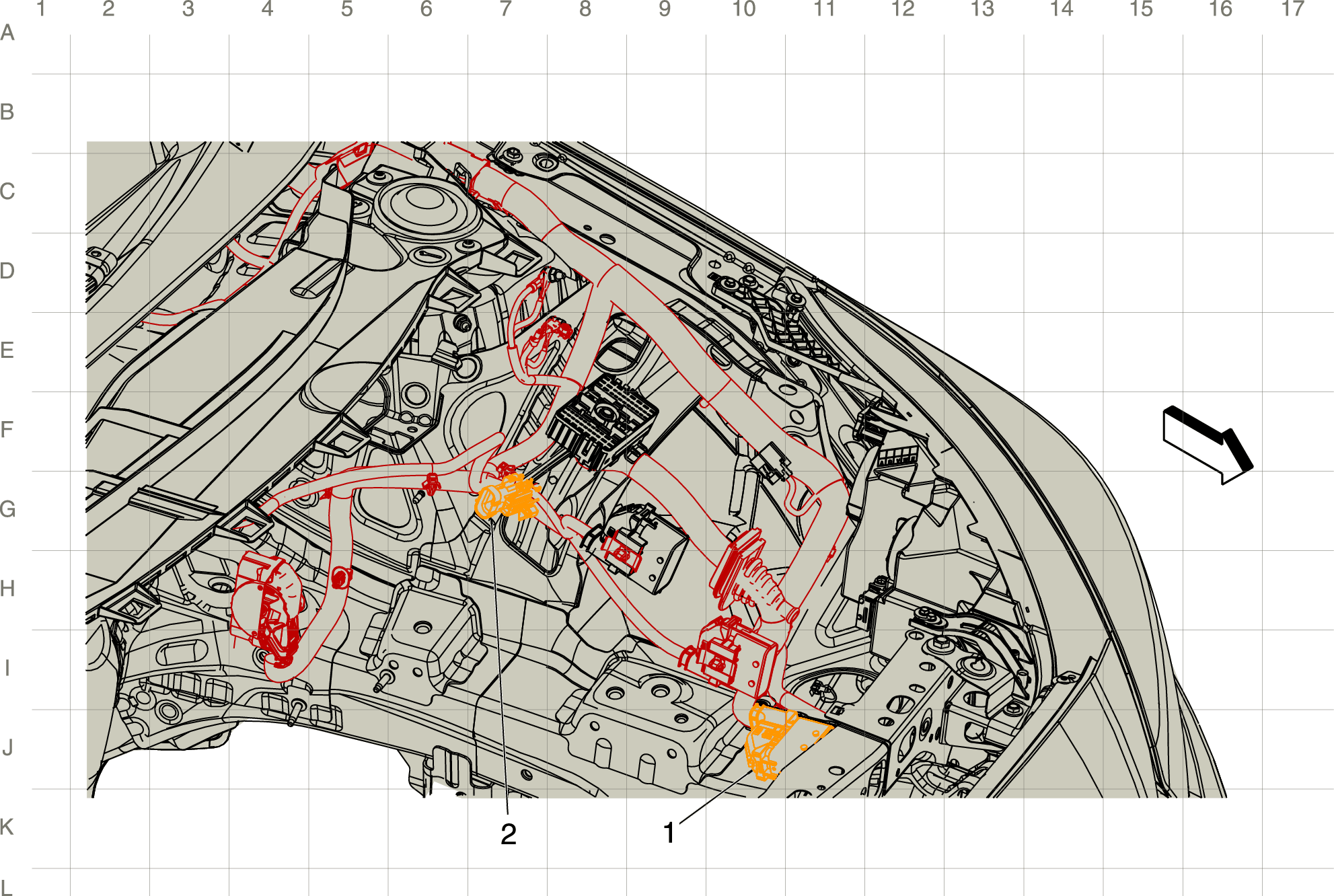

GM3767984Courtesy of GENERAL MOTORS COMPANY
Items
1. X100 Forward Lamp Harness to Body Harness X100 Forward Lamp Harness to Body Harness
2. X160 Engine Harness to Fuel Injector Harness (12 cavities) X160 Engine Harness to Fuel Injector Harness
