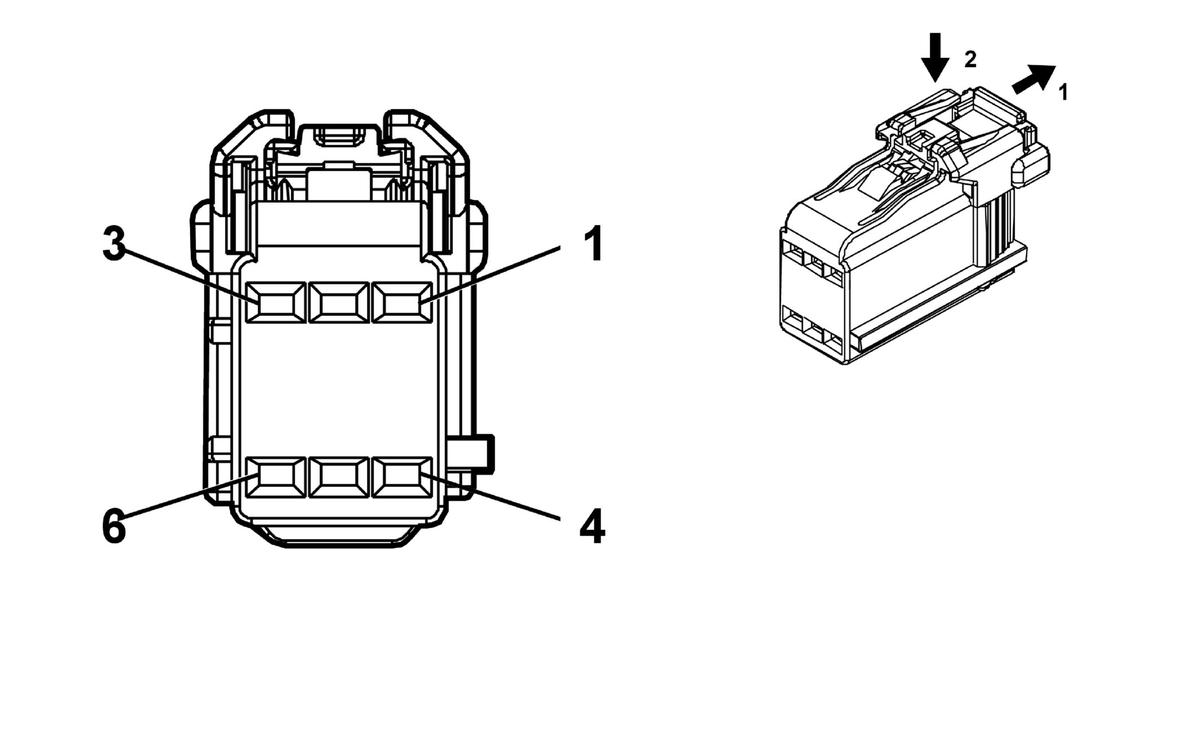

X410 Left Tail Lamp Harness to Body Harness (Notchback+UGE)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Left Tail Lamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 35087161
- Service Connector: 19371221
- Description: 6-Way M 1.2 OCS Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
GY/YE |
7542 |
I |
- |
Left Rear Stop Lamp Control |
1 |
0.75 |
GY/YE |
7542 |
II |
- |
| 2 |
0.5 |
BN/BU |
2509 |
I |
- |
Left Rear Park Lamp Control |
2 |
0.5 |
BN/BU |
2509 |
II |
- |
| 3 |
0.75 |
BU/WH |
1334 |
I |
- |
Left Rear Turn Signal Lamp Control |
3 |
0.75 |
BU/WH |
1334 |
II |
- |
| 4 |
0.75 |
BN/BU |
2509 |
I |
- |
Left Rear Park Lamp Control |
4 |
0.75 |
BN/BU |
2509 |
II |
- |
| 5 |
0.5 |
BK |
2550 |
I |
- |
Ground |
5 |
0.5 |
BK |
2550 |
II |
- |
| 6 |
0.75 |
BK |
2550 |
I |
- |
Ground |
6 |
0.75 |
BK |
2550 |
II |
- |
