X213 Headliner Harness to Body Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

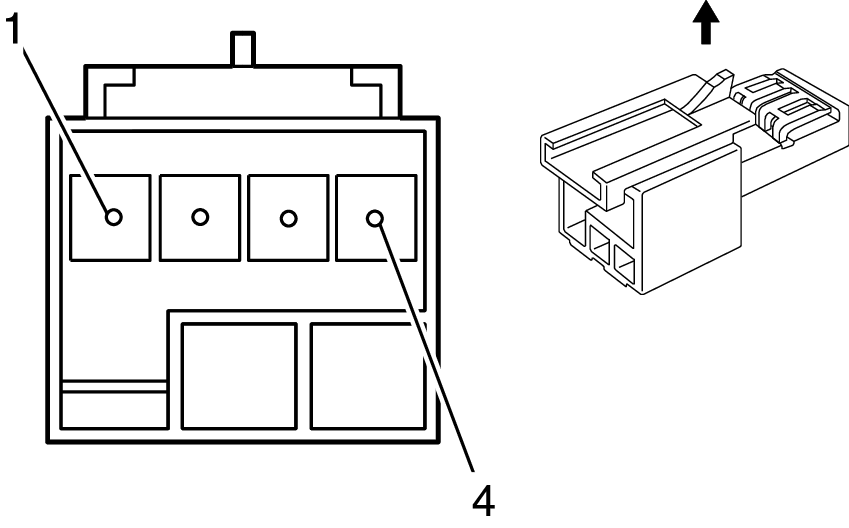

Connector Part Information
- Harness Type: Headliner
- OEM Connector: 15439868
- Service Connector: 13579438
- Description: 4-Way F 0.64 MTS Series (BK)
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 15344963
- Service Connector: 19300482
- Description: 4-Way M 0.64 Micro-Quadlock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.13 |
WH |
2515 |
I |
- |
Keypad Control |
1 |
0.35 |
GN/BN |
2515 |
II |
- |
| 2 |
0.13 |
GN |
2514 |
I |
- |
Keypad Signal |
2 |
0.35 |
GN/WH |
2514 |
II |
- |
| 3 |
0.13 |
VT |
2516 |
I |
- |
Keypad Green LED Control |
3 |
0.35 |
YE/BU |
2516 |
II |
- |
| 4 |
0.13 |
BN |
2517 |
I |
- |
Keypad Red LED Control |
4 |
0.35 |
BN/WH |
2517 |
II |
- |
