Overhead Console Components (2 of 2)

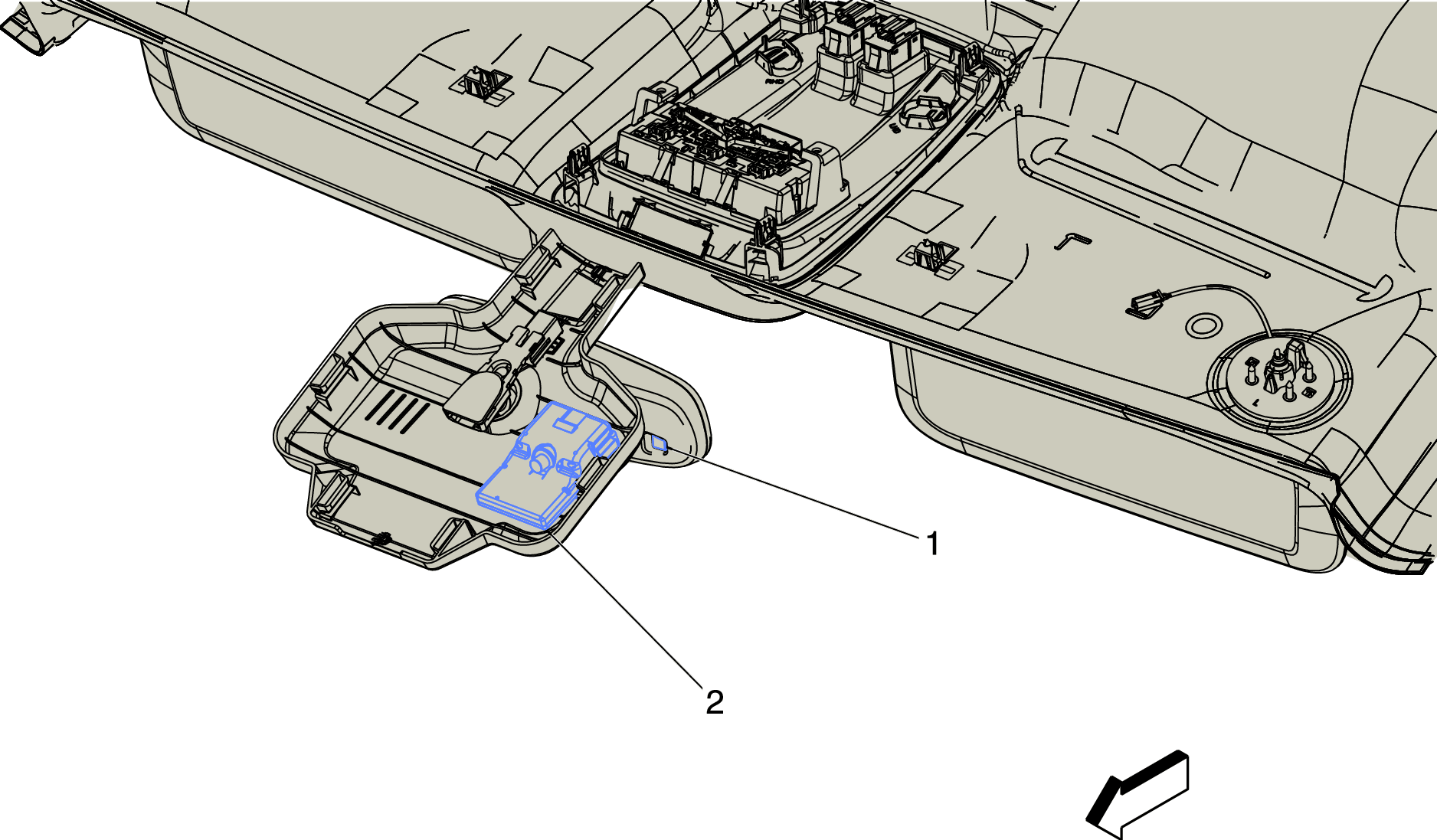

GM4775618Courtesy of GENERAL MOTORS COMPANY
Overhead Console Components (2 of 2)

Items
1. B160 Windshield Temperature and Inside Moisture Sensor B160 Windshield Temperature and Inside Moisture Sensor
2. B174 Frontview Camera B174 Frontview Camera
